Description
Overview
The X2812 900KV and 1115KV brushless motors are designed for high-performance 7-9 inch FPV long-range and freestyle drones. Featuring a powerful 12N14P high-torque design. these motors deliver outstanding thrust. efficiency. and reliability. Compatible with 2-6S LiPo batteries and optimized for CF9×4.7 propellers. the X2812 series is ideal for demanding RC airplanes. multirotors. and long-range drone applications.
Specifications
| Specification | X2812 (900KV) | X2812 (1115KV) |
|---|---|---|
| Supported Voltage | 2S–6S LiPo | 2S–6S LiPo |
| Max Power (6S) | 950W | 1480W |
| Peak Current (6S) | 40A | 60A |
| Idle Current (10V) | 1A | 1.2A |
| Internal Resistance | 68mΩ | 78mΩ |
| Motor Size | 33.5mm × 22.5mm | |
| Shaft Diameter | 4mm | |
| Weight (without wires) | 73g | |
| Framework | 12N14P | |
| Recommended Propeller | CF9×4.7 |
Key Features
-
High Performance Design: 12N14P high-torque structure delivers powerful and stable thrust.
-
Wide Voltage Compatibility: Supports 2-6S LiPo batteries for flexible setups.
-
Durable Construction: High-purity copper windings ensure excellent efficiency and heat resistance.
-
Dynamically Balanced Rotors: Reduces vibration and ensures smooth operation during high-speed flights.
-
Optimized for 7″-9″ Drones: Ideal choice for XL7. APEX. Mark4. and other 7-9 inch long-range or freestyle frames.
-
Lightweight and Powerful: Only 73g per motor while offering up to 1480W output (1115KV version).
Application Scenarios
-
7″. 8″. 9″ Long-Range FPV Drones
-
Racing and Freestyle Multirotors
-
RC Airplanes and DIY UAV Projects
The X2812 900KV/1115KV 3-6S brushless motors deliver powerful thrust and smooth performance for 7″-9″ FPV long-range and racing drones. Featuring a 12N14P high-torque design. lightweight 73g build. and up to 1480W max power. they are perfect for XL7. APEX. Mark4. and other freestyle or DIY multirotors. Compatible with CF9×4.7 propellers.
Package Includes
-
4 × X2812 Brushless Motors (900KV or 1115KV version)
-
16 × Mounting Screws
-
4 × Propeller Lock Nuts
X2812 brushless motor specs: 900KV/1115KV. 2S-6S cells. 73g weight. 4mm shaft. max power 950W/1480W. dimensions 33.5×22.5mm. idle current 1A/1.2A. peak current 40A/60A. internal resistance 68mΩ/78mΩ.

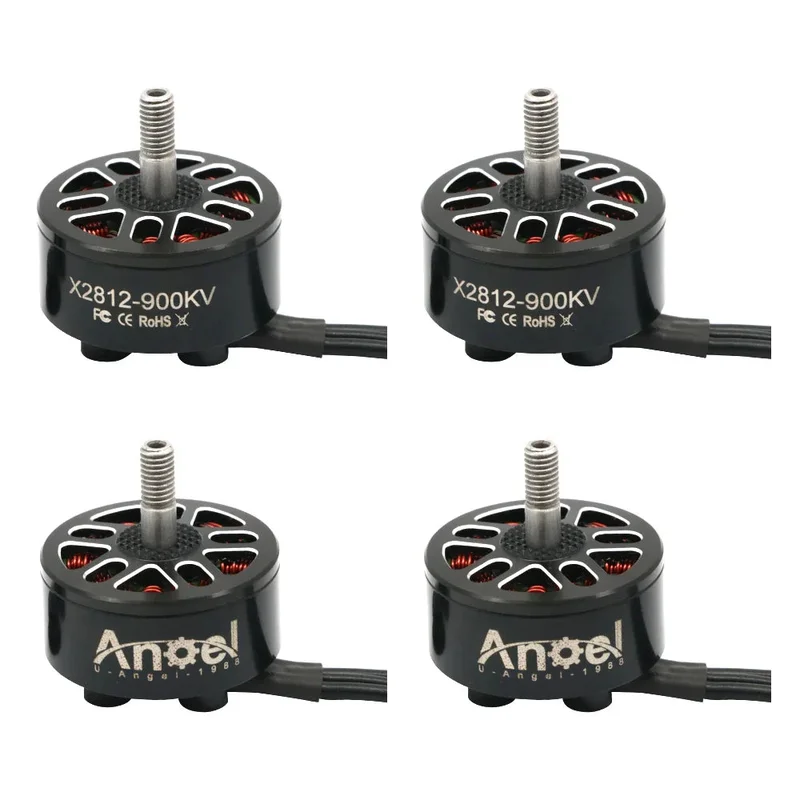

X2812-900KV 3-6S brushless motors. black design with Angel branding.
