Description

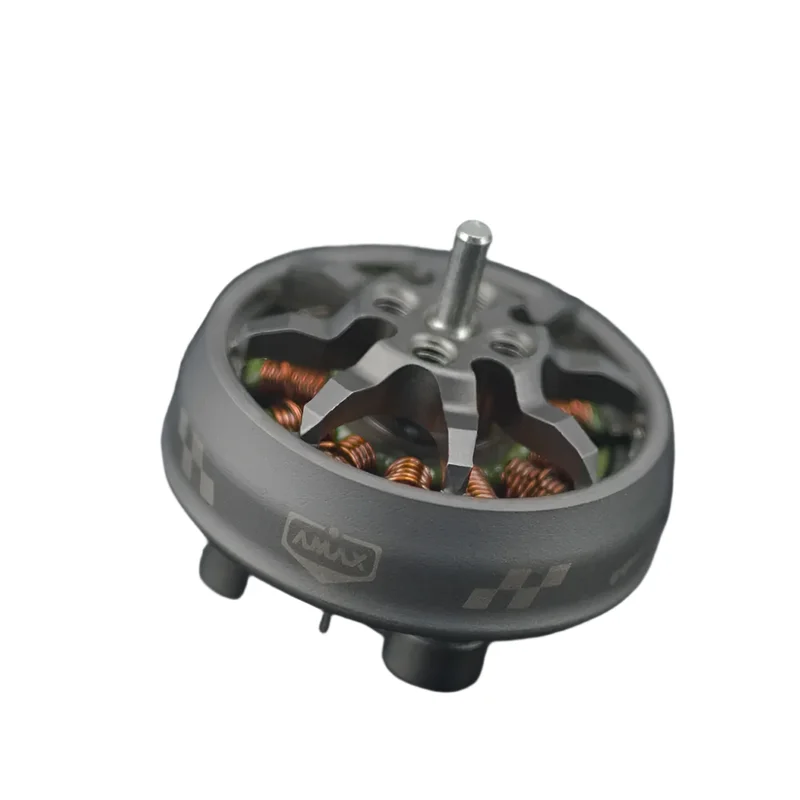

The AMAX 1504 Competition Brushless Motor is designed for high-performance FPV builds. offering exceptional efficiency. durability. and responsiveness in a compact form. Available in 3000KV to 6000KV variants. it supports 3-6S LiPo setups and is ideal for 2.5-inch cinewhoops to 4-inch toothpick racing drones.
Crafted from 7075 aluminum and precision CNC machined. the AMAX 1504 features the exclusive AMAX-Lock-Bell design for enhanced crash resistance and rainproof reliability. The low-profile structure and integrated cooling fins maximize heat dissipation during high-power bursts.
Its 1.5mm titanium shaft is paired with IP54-rated Japanese bearings for smoother rotation and dust-proof longevity. The stator uses premium Kawasaki lamination and sealed windings. with 260°C-rated copper wires for extreme thermal tolerance and sustained power.
Key Features:
-
KV Options: 3000KV / 3500KV / 4000KV / 4700KV / 5500KV / 6000KV
-
Voltage: Supports 3–6S LiPo
-
Mounting Pattern: 9mm & 12mm options
-
Shaft Diameter: 1.5mm titanium alloy
-
Weight: 12.5g with cable / 10.5g without
-
Peak Power: 320W (10s burst)
-
Continuous Power: 230W
-
Wire Length: 130mm
-
Configuration: 12N14P
Engineering Highlights:
-
Bell: Thickened crash zone. large cooling area. electroplated scratch-proof finish
-
Base: Thick thread holes. signature AMAX cooling fins. high-temp silicone wires
-
Magnets: Curved. anti-slip ring fixed. tight air gap
-
Stator & Windings: Japanese lamination. 260°C-rated thick copper for robustness
-
Bearings: Hidden IP54 water & dustproof. made in Japan
-
Shaft: Lightweight titanium. fixed with secure screw design
Application:
Perfect for 2.5″ cinewhoop. 3-4″ toothpick. racing quadcopters. and freestyle FPV drones requiring both lightweight and explosive performance.
Amax 1504 Brushless Motor: Shock-resistant. no parting bell. low profile. 7075 aluminum. dynamically balanced. rainproof. integrated bearing protection. reliable with no wear-out parts. Precisely CNC-machined innovation.
Amax 1504 Brushless Motor offers enhanced crash protection. improved cooling. and a scratch-resistant surface.
Amax 1504 Brushless Motor includes extra-thick base. longer thread hole. cooling fins. 7075 aluminum. heat-resistant cables. curved magnets. anti-slip ring. and super tight air gap for enhanced performance.
Amax 1504 Brushless Motor includes Japanese Kawasaki stator lamination. sealed windings. 260°C tolerance. thick copper wires. and enhanced cooling for efficiency.
Amax 1504 Brushless Motor with hidden bearing. IP54 protection. and Japanese bearings for longevity.
Amax 1504 Brushless Motor: Titanium shaft. light. strong. easy maintenance with screw fixation.
Amax 1504 Brushless Motor: 12N14P configuration. 320W peak power. 230W max continuous power. 130mm cable length. 12.5g with cables. 10.5g without.
Amax 1504 Brushless Motor data includes voltage. current. thrust. power. efficiency. and temperature at various throttle settings. kV ratings. and propellers.
Amax 1504 Brushless Motor data at various throttle settings: voltage. current. thrust. power. efficiency. temperature for two propellers. 12V. 3S LiPo battery.
Amax 1504 Brushless Motor data for two propellers at different throttle settings. including voltage. current. thrust. power. efficiency. and temperature.
Amax 1504 Brushless Motor data for two propellers at various throttle settings. Includes voltage. current. thrust. power. efficiency. and temperature metrics for 3.5×2 and 4×2 props under 12V (3S LiPo).
Amax 1504 Brushless Motor performance data at 16V. 4S LiPo: kV 5500 and 4700. Includes throttle. current. thrust. power. efficiency. and temperature metrics for various settings.
Amax 1504 Brushless Motor data at 16V. 4S LiPo. Propellers: 3.5×2. 4700/4000 kV. Details: throttle. current. thrust. power. efficiency. temperature across settings.
Amax 1504 Brushless Motor data: 16V. 4S LiPo. 3000 kV. Throttle from 30% to 100%. current 2.6-16 A. thrust 157-538 g. power 39-240 W. efficiency 4.03-2.24 g/W. temperature 69°C.
Amax 1504 Brushless Motor data: 24V. 6S LiPo. 3×3000 kV propeller. Throttle from 30% to 100%. current 3.5-13.7 A. thrust 186-623 g. power 81-315 W. efficiency 2.31-1.98 g/W. temp 80°C at 100%.
