Description

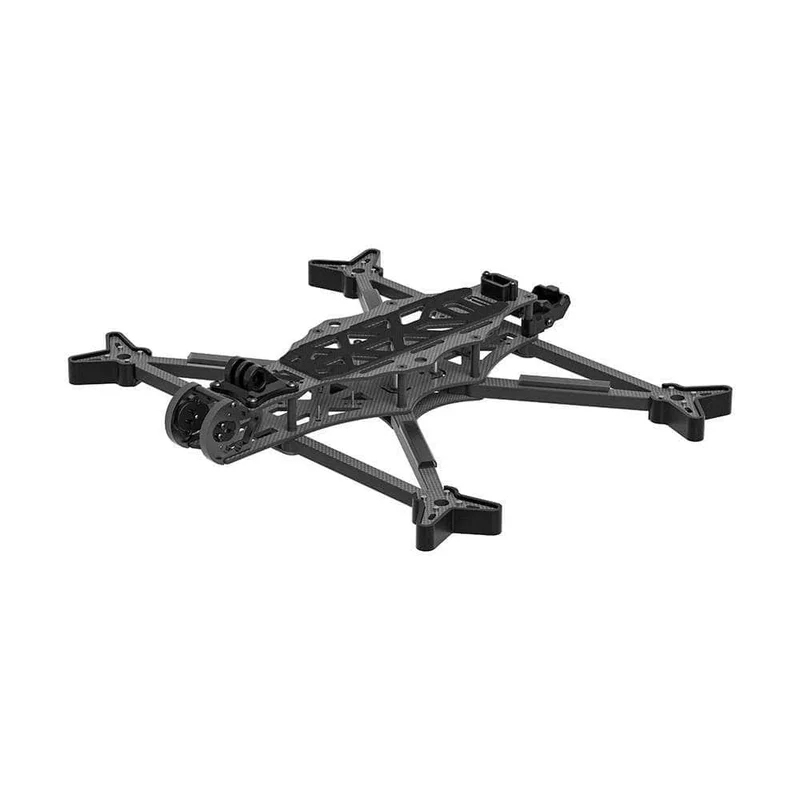

The AOS RC 7 V5 Frame Kit is the next evolution of the legendary AOS 7, preserving its ultra-stiff and durable geometry while introducing powerful new features for long-range and cinematic FPV. With its rugged 7075 aluminum camera cage, patent-pending AOS X-Cell anti-vibration system, and extensive stack/VTX compatibility, the AOS 7 V5 is engineered for elite performance and easy building.
Be sure to browse the rest of our AOS RC products and DJI compatible frames, electronics and accessories.
Features
- Ultra-durable 7075 aluminum camera cage
- AOS X-Cell anti-vibration mount
- Retains proven AOS geometry
- Broad FPV compatibility
- Flexible stack mounting
- User-friendly build
- VTX-ready
Specifications
- Product Name: AOS 7 V5 Frame Kit
- Frame wheelbase: 313mm
- Frame Dimension: L254 x W184 x H36 mm
- Arm Thickness: 8mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2.5mm
- Upper Plate Thickness: 2mm
- Flight Stack Mounting: 20 x 20 Φ3mm / 30 x 30 Φ3mm
- VTX Mounting: 20 x 20 Φ2mm / 25.5 x 25.5 Φ2mm / 30 x 30 Φ3mm
- Motor Mounting: 19 x 19mm -φ3
- Weight: 325g
- Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX
Includes
- 1x AOS 7 V5 Frame Kit
- 1x TPU Parts
- 4x Motor Wire Shield Tube
- 1x Screw Bag
- 2x Battery Strap
