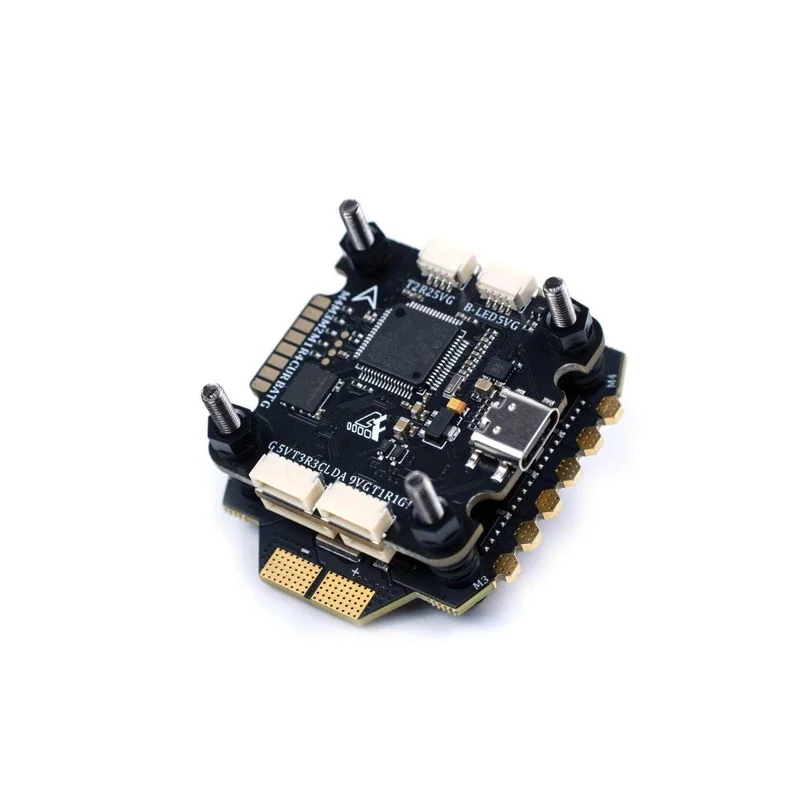

AxisFlying Argus F722 3-6S 30×30 Stack/Combo (F7 FC / 32bit 55A 4in1 ESC)

Description

The Plug and Play Argus is AxisFlying electronic series that includes ESC, FC, and stack.  Argus PRO series adopt a full aluminum cover wrapped that can get IP54 to protect PCB.  Argus series is PCB electronic only. There are 2 kinds of ESC 55A and 65A. The FC is F722 which can support X8.

Check out all our 30×30 FC Stacks, and all our Axis Flying Products!

Specifications

Argus F722 Flight Controller

• MCU: STM32F722RET6
• Gyro: BMI270
• Barometer: Yes
• OSD: Yes
• BEC: 9V/2A, 5V/2A
• UART Ports: 6
• Black Box: 16MB onboard
• Number of supported motors: 8
• Firmware Name: AXISFLYINGF7PRO
• Input Voltage: 3-6S LiPo
• Installation Holes: 30.5×30.5mm M3

32bit 4in1 ESC

• Continuous Current: 55A
• Burst Current: 65A
• Input Voltage: 3-6S
• ESC Target: BLHeli_32 (ST_G0_04)
• Current Proportion value: Scale=400
• PWM Frequency Range: 16-96khz
• Telemetry: Supported
• Ammeter: Supported
• BEC: No
• Installation holes: 30.5×30.5mm
• Dimensions: 48.6x44x6.3mm
• Weight: 16.2g

Includes

• 1x AxisFlying Argus F722 3-6S 30×30 Stack/Combo (F7 FC / 32bit 55A 4in1 ESC)
• 1x Wiring Set
