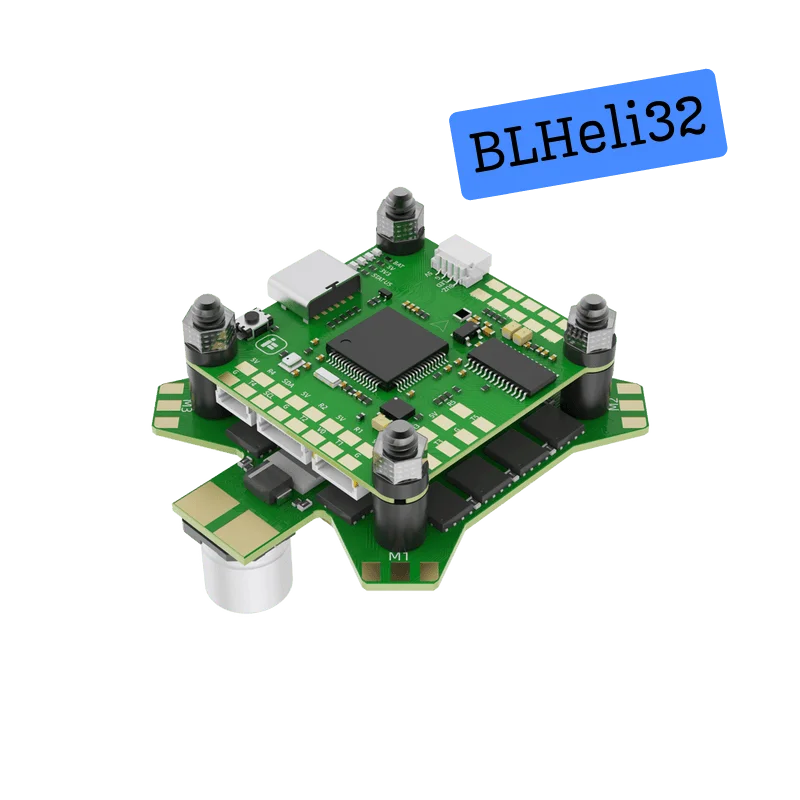

BLITZ F7 Stack (E55 4in1 ESC)

Description

Our latest BLITZ Stack used in our iFlight BNFs. Ultra fast F7 MCU, powerful 55A for 2-6S batteries. 30,5×30,5 mounting pattern. The perfect match for your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX Connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual debugging, with LC filter.

FC Specifications:

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

Wiring Suggestions:

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

ESC Specifications

Mounting Holes: 30.5*30.5mm/Φ4mm

Weight: 15.3g

Supports 2-6S lipo input

MCU: G071

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: IFLIGHT_BLITZ_G3 32.9

Packing List:

1 x BLITZ F7 V1.2 Flight Controller

1 x BLITZ E55 4-IN-1 2-6S ESC

1 x silicon grommets

1 x wire harness for F7 Flight controller
