Description

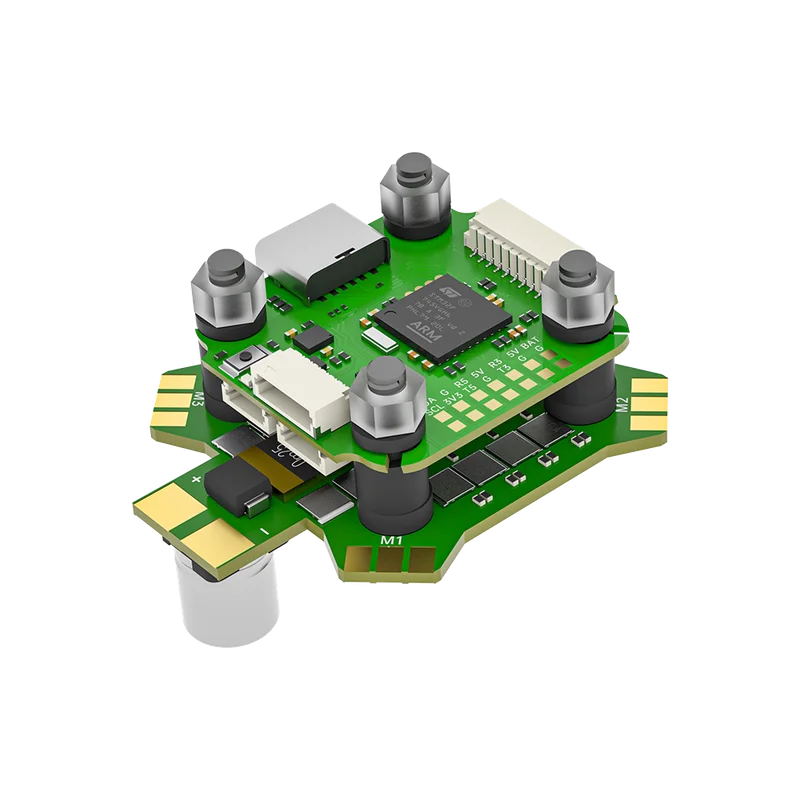

Our latest BLITZ Mini Stack used in our iFlight BNFs. Ultra fast F7 MCU, powerful 55A for 2-6S batteries. 20×20 mounting pattern. The perfect match for your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX Connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual debugging.
Features
Improved circuit design, better components, and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
Supports Betaflight and Ardupilot firmware
Changelog
June 27, 2024: Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download “BLHeliSuite32Test”.
FC Specifications
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: arduplane_with_bl
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
ESC Specifications
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU: G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9
Packing List
1 x BLITZ Mini F745 Flight Controller
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x silicon grommets
1 x wire harness for F7 Flight controller
