Description
Introducing the all-new Borg Series — where power meets precision.

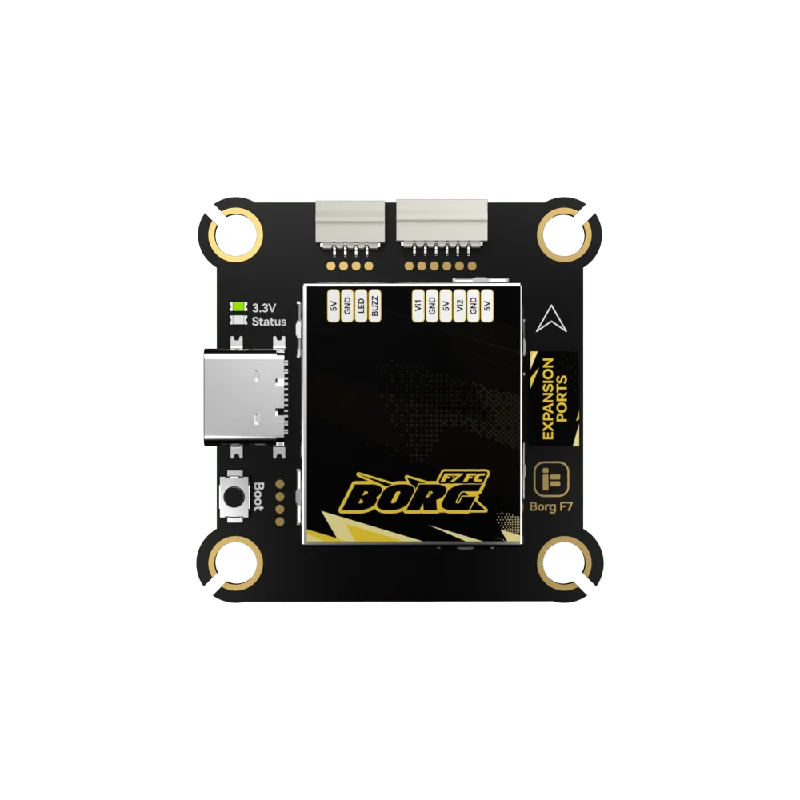

The Borg F7 Flight Controller is expertly engineered for 5–10 inch FPV drones, delivering exceptional stability and uncompromising performance. Elevate your flying experience with the advanced technology and reliable design of the Borg Series.
Features
Supports 4S to 6S battery inputs, offering versatility for various setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Supports dual camera input and allows switching via the remote controller.
Specifications
Input voltage: 4-6S; Support LIHV battery
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E (LGA)
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4
I2C serial: Support
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5φ4
Dimensions: 37.5*37.5mm±1
Weight: 14g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for Receiver
UART 3 for GPS or other sensors that require a serial port
UART 4 for GPS
UART 5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Packing List
1 x Borg F7 Flight Controller
1 x Cable set
5 x silicon grommets
Mode Command
VTX_ON_OFF Mode Command
resource PINIO 1 C0
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_1_name = VTX_ON_OFF
aux 0 40 8 900 2100 0 0
save
Camera ON&OFF Command
resource PINIO 2 C14
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_2_name = CAM_SW
aux 1 41 9 900 2100 0 0
save
Note
iFlight products are for fun purposes only and do not support autonomous flight.
