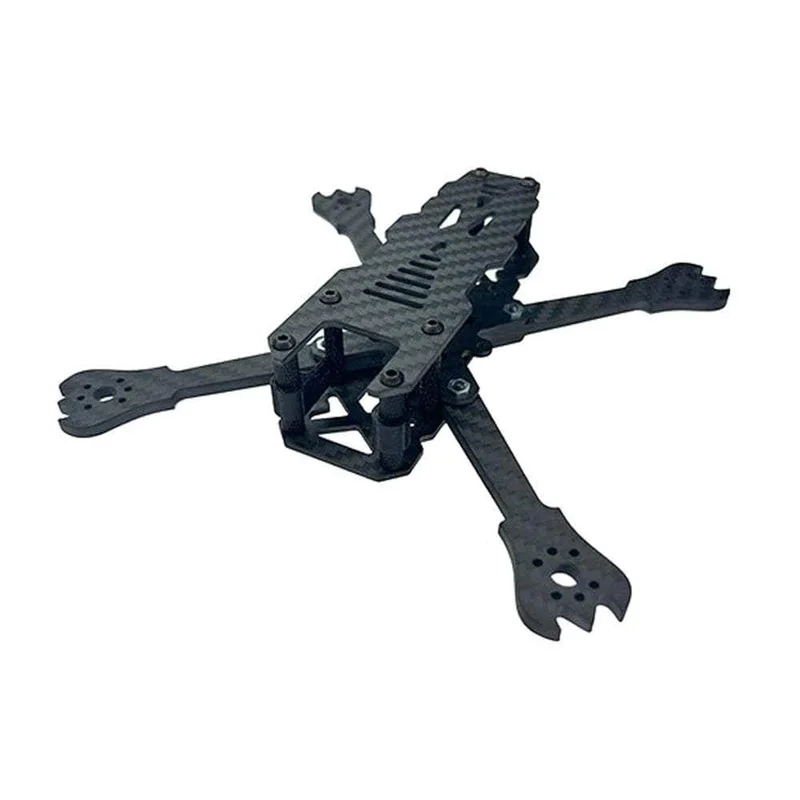

Botgrinder Grinderino 3.5″ / 5″ Frame Kit – Choose 3.5″ or 5″

Description

UPDATE: The Grinderino now has available 3.5″ or 5″ arm choice.

Once again, Botgrinder and the Ummagawd team make another absolute banger of a frame. – Imagine a Demibot-level frame but in a smaller package!This frame will fit a single board whoop-style AIO or a 20 x 20 stack. The rear of the frame provides plenty of space to fit a VTX of your choice, and just the same, the front will accommodate any camera. And, despite its size, it’s still under 250g all-up weight!

Be sure to check out all our 3.5″ frames, as well as the rest of our Ummagawd selection!

Specs:

• Arms: 4mm
• Top Plate: 2mm
• Bottom Plate: 2mm
• Mid Plate: 2mm
• Standoffs: 6mm OD 7075 Aluminum
• FC Mounting: 20×20 and 25.5×25.5 (whoop style)
• VTX Mounting: 20×20 and 25.5×25.5 (whoop style)
• Frame Weight: 65g
• Motor Mounting Pattern: 12mm x 12mm and 9mm x 9mm

Frame Kit Includes:

• 1x Top Plate
• 2x Arms
• 1xBottom Plate
• 1x Mid Plate (with press nuts)
• 1x Hardware Kit
• 1x Ummagrip Battery Pad
• 2x Battery Straps
• 1x Set of TPU FPV Camera Mounts
