Description

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: CVD

Tool Supplies: Grinded

Technical parameters: Value 3

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: LPD 2806.5

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Specifications
KV: 1300KV/1700KV
Configuration: 12N14P
No.of Cells(Lipo): 4-6S
Rotor: N52H arc magnets
Copper wire: 260 ℃ Military grade
Stator: 0.2mm Kawasaki silicon steel
Shaft: Titanium Alloy hollow shaft
Bearings: Japanese NMB 12X6X4
Wire AWG: 18AWG 20cm length
Bell cap: Al 7075
Base casing: Al 7075
Prop Adapter Shaft Thread: M5
Bolt Pattern: M3(19X19mm)

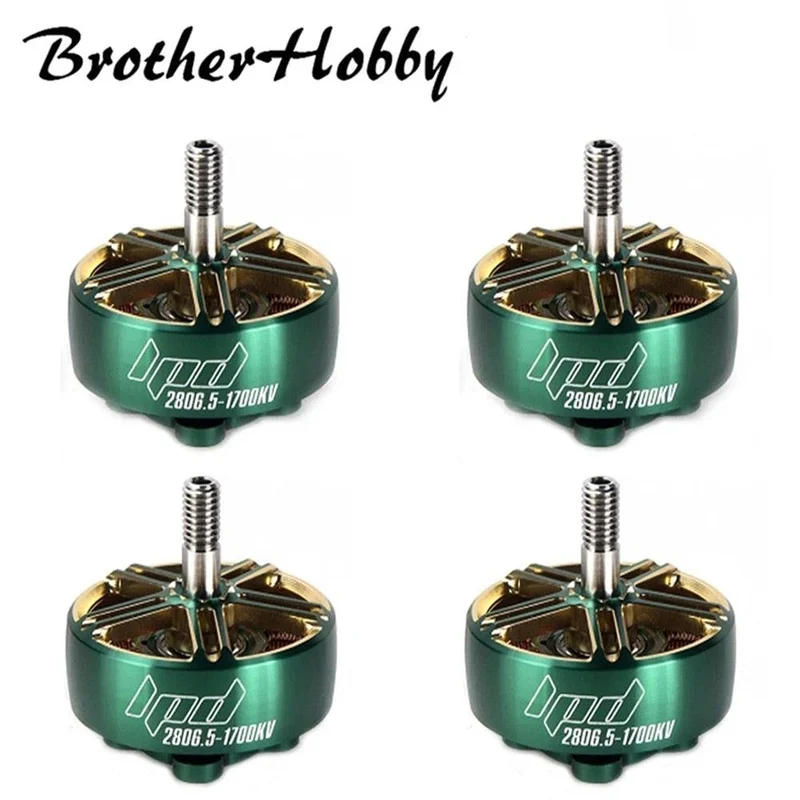

Introducing the Brotherhobby LPD 2806.5 brushless motor. an essential component for building high-performance RC FPV racing drones and multicopters. Suggested setup specifications include kv ratings of 1300 or 1700. suitable for propellers ranging from 7 to 9 inches in diameter. Key performance metrics include thrust output (21691 rpm). thrust efficiency (2.38 gf/w). maximum current draw (50.1A). and input power (1056.72W).

The Brotherhobby LPD 2806.5 brushless motor features a durable aerospace-grade 7075 aluminum housing with a hard anodized finish that resists wear and tear. The internal components include Japanese NMB bearings. which provide a silky smooth running experience and are designed to withstand the demands of high-performance flight.

Key specifications for the Brotherhobby LPD 2806.5 brushless motor include:* KV ratings: 1300KV and 1700KV* Wire gauge: 18AWG* Configuration: 12N14P (12 poles. 14 turns per pole)* Base casing material: AI 7075 aluminum alloy* Number of cells (Lipo): 4S-6S (compatible with 4 to 6 cell lithium polymer batteries)* Bell cap material: AI 7075 aluminum alloy* Magnet type: NSZH arc magnets* Weight: 41g (including 20cm long wires)* Copper wire material: High-grade. missile-quality material* Bearings: Japanese NMB bearings with a high-temperature rating of 260°CAdditional details include:* Drawing size: H5 (200mm)
