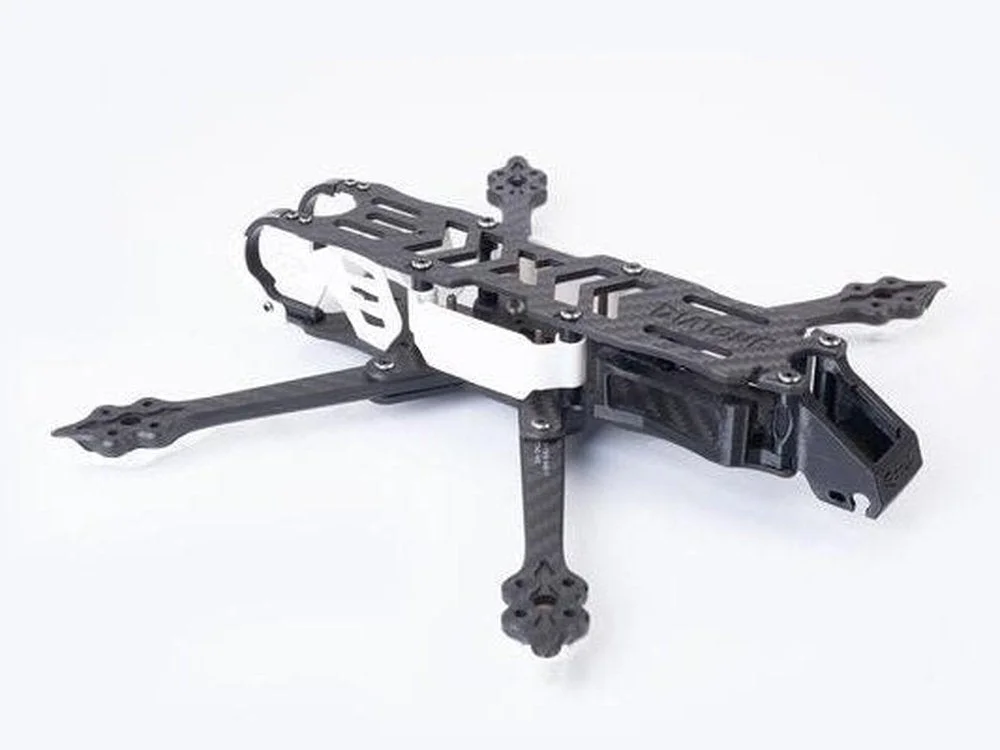

Diatone Roma F5 5 Inch Frame Kit

Description

Effortlessly become one with the wind with the Roma series, created using excellent craftsmanship and surpassing its freestyle predecessors. Fly the Roma frame to get maximum control over your FPV drone.

This frame kit is designed to work with traditional analog system.  The frame is made from high-quality carbon fiber, with aluminum alloy CNC parts and molded plastics.

Specifications:

• Wheelbase:  218mm
• Weight:  120g
• Prop Size：5 inch
• FC Mounting:  30.5×30.5(M3)&20×20mm（M3）
• Motor Mounting:  16mm
• Top Plate 2.5mm
• Bottom Plate 2.5mm
• Rated Voltage：3-6S
• Aluminum alloy：7075
• Carbon Fiber:  T300 3K
• Injection Part：Camera Metal Mount Protector，Arm Protector，Univeral Adjustable Gopro Mount

Recommended Configuration:

• Supported Prop Size:  5.1 Inch
• Camera Spacing:  19/20mm
• Recommended LiPo:  4S-6S
• Recommended Motor Size:  22/23 Series Motor

Includes:

1x Diatone Roma F5 Frame Kit
