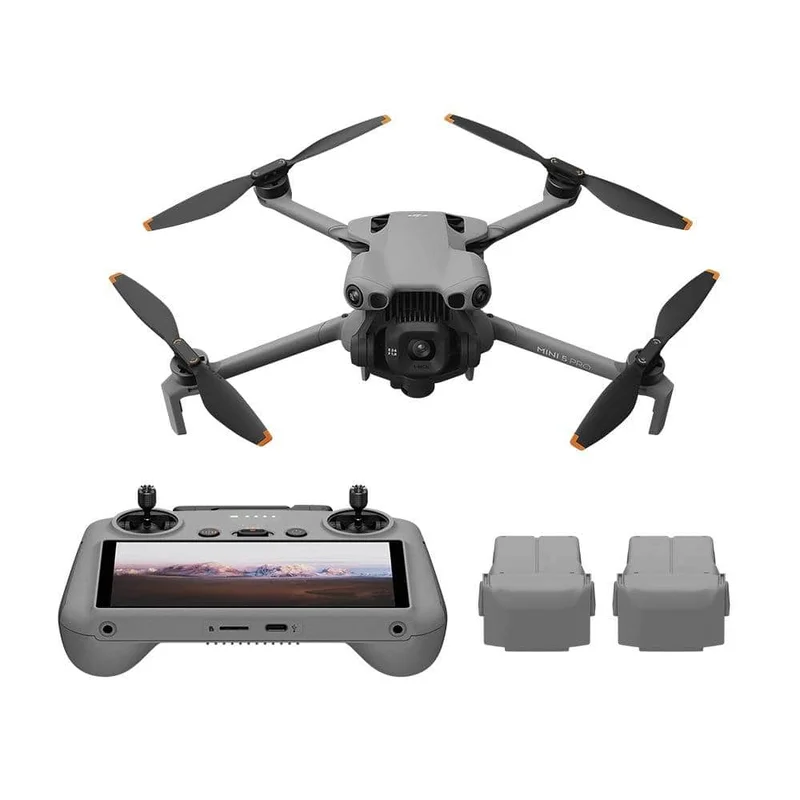

DJI Mini 5 Pro Fly More Combo Plus – DJI RC2

Description

All products with batteries must be shipped by a ground shipping method.

The DJI Mini 5 Pro features a 1-inch CMOS camera, nightscape omnidirectional obstacle sensing, a gimbal with 225° of flexible rotation, and upgraded ActiveTrack 360°, all packed into its signature lightweight body. With performance on par with flagship drones, it captures life’s beautiful moments and preserves your treasured memories in stunning detail.

Check out our other RTF combos, all our pre-built quads and all of our DJI products!

Features

• 1-Inch CMOS Sensor, Capture Like a Pro
• True Vertical Shooting and 225° Flexible Gimbal Rotation
• 225° Gimbal Rotation for Dynamic Camera Movement
• Confident Flight With Nightscape Omnidirectional Obstacle Sensing
• 10-bit Video and High ISO Performance

Specifications

AIRCRAFT

• Takeoff Weight: Approx. 249.9 g
• Dimensions:
  • Folded (without propellers): 157×95×68 mm (L×W×H)
  • Unfolded (with propellers): 304×380×91 mm (L×W×H)
• Max Ascent Speed:
  • 3 m/s (C mode)
  • 6 m/s (N mode)
  • 10 m/s (S mode)
• Max Descent Speed:
  • 3 m/s (C mode)
  • 6 m/s (N mode)
  • 6 m/s (S mode)
• Max Horizontal Speed:
  • 15 m/s (tracking status)
  • 18 m/s (S mode)
• Max Takeoff Altitude: 4500 m
• Max Flight Time: Approx. 36 mins
• Typical Flight Time: Approx. 21 mins
• Max Flight Distance: 21 km
• Max Wind Speed Resistance: 12 m/s
• Operating Temperature: -10° to 40°C (14° to 104°F)
• Global Navigation Satellite System: GPS + Galileo + BeiDou
• Internal Storage: 42 GB
• Class: C0 (EU)

CAMERA

• Image Sensor: 1-Inch CMOS, 50MP Effective Pixels
• Lens:
  • FOV: 84°
  • Format Equivalent: 24 mm
  • Aperture: f/1.8
  • Focus: 0.5 m to ∞
• ISO Range:
  • Video
    • Normal:
      • 100-12800 (Normal)
      • 100-3200 (D-Log M)
      • 100-3200 (HLG)
    • Slow Motion:
      • 100-6400 (Normal)
      • 100-3200 (D-Log M)
      • 100-3200 (HLG)
  • Photo
    • 100-6400 (12 MP)
    • 100-3200 (50 MP)
• Shutter Speed:
  • 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
  • 50MP Photo: 1/8000-2 s
• Max Image Size: 8192×6144
• Photo Format: JPEG/DNG (RAW)
• Video Resolution:
  • H.264/H.265
  • 4K: 3840×2160@24/25/30/48/50/60/120*fps
  • FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps
  • * Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding
• Video Format: MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
• Max Video Bitrate: H.264/H.265: 130 Mbps
• Color Mode:
  • Normal (FHD): 8-bit 4:2:0 (H.264)
  • Normal (FHD/4K): 10-bit 4:2:0 (H.265)
  • HLG/D-Log M: 10-bit 4:2:0 (H.265)
• Camera FOV
  Single Lens Mode:
  With RC 2/RC-N2/RC-N3: Natural Wide
  With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Standard (Dewarp)/Wide/Natural Wide
• Digital Zoom:
  • 12MP Photo: 1-3x
  • 4K: 1-3x
  • FHD: 1-4x
• Supported File System: exFAT

GIMBAL

• Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)
• Mechanical Range:
  • Tilt: -135° to 80°
  • Roll: -230° to 95°
  • Pan: -25° to 25°
• Controllable Range
  • Tilt: -90° to 55°
  • Roll: -180° to 45°
• Max Control Speed: 100°/s
• Angular Vibration Range: ±0.005°

VIDEO TRANSMISSION

• Video Transmission System: O4+
• Live View Quality: Remote Controller: 1080p/30fps, 1080p/60fps
• Operating Frequency:
  • 2.400-2.4835 GHz
  • 5.170-5.250 GHz*
  • 5.725-5.850 GHz
  • Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
• Transmitter Power (EIRP):
  • 2.400-2.4835 GHz:
    • < 33 dBm (FCC)
    • < 20 dBm (CE/SRRC/MIC)
  • 5.170-5.250 GHz:
    • < 23 dBm (CE)
  • 5.725-5.850 GHz:
    • < 33 dBm (FCC)
    • < 30 dBm (SRRC)
    • < 14 dBm (CE)
• Max Transmission Distance (unobstructed, free of interference):
  • FCC: 20 km
  • CE: 10 km
  • SRRC: 10 km
  • MIC: 10 km
• Max Transmission Distance (unobstructed, with interference):
  • Strong Interference: Urban landscape, approx. 1.5-4 km
  • Medium Interference: Suburban landscape, approx. 4-10 km
  • Low Interference: Suburb/seaside, approx. 10-20 km
• Max Transmission Distance (obstructed, with interference):
  • Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
  • Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km
• Max Download Speed:
  • O4+: 10 MB/s
  • Wi-Fi 6: 100 MB/s*
  • * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, and when internal storage or a high-speed microSD card is used. Download speeds may vary depending on the actual conditions.
• Lowest Latency: Aircraft + Remote Controller: Approx. 120 ms
• Antennas: 4 antennas, 2T4R

INTELLIGENT FLIGHT BATTERY

• Capacity: 2788 mAh
• Weight: Approx. 71.2 g
• Nominal Voltage: 7 V
• Max Charging Voltage: 8.6 V
• Battery Type: Li-ion
• Energy: ≥ 19.52 Wh
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Charging Time:
  • 1 battery can be fully charged in approx. 69 minutes by charging through the drone using the DJI 65W Portable Charger.
  • 1 battery can be fully charged in approx. 46 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.
  • 3 batteries can be fully charged in approx. 115 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.

BATTERY CHARGING HUB

• Input: 5-15 V, max 4.3 A
• Output: 5-15 V, max 2 A
• Compatibility: DJI Mini 5 Pro Intelligent Flight Battery, DJI Mini 5 Pro Intelligent Flight Battery Plus

WI-FI

• Protocol: 802.11 a/b/g/n/ac/ax
• Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
• Transmitter Power (EIRP):
  • 2.400-2.4835 GHz:
    • < 20 dBm (FCC/CE/SRRC/MIC)
  • 5.725-5.850 GHz:
    • < 26 dBm (FCC/SRRC)
    • < 14 dBm (CE)

BLUETOOTH

• Protocol: Bluetooth 5.4
• Operating Frequency: 2.400-2.4835 GHz
• Transmitter Power (EIRP): < 10 dBm

DJI RC 2 REMOTE CONTROLLER

• Max Operating Time: 3 Hours
• Operating Temperature: -10° to 40°C (14° to 104°F)
• Charging Temperature: 5° to 40°C (41° to 104°F)
• Charging Time: 1.5 hours (with 9V/3A charger)
• Charging Type: Supports up to 9V/3A fast charge.
• Weight: Approx. 420 g
• Dimensions: 168.4×132.5×62.7 mm (L×W×H)
• Operating Frequency:
  • 2.400 GHz to 2.4835 GHz
  • 5.170 GHz to 5.250 GHz
  • 5.725 GHz to 5.850 GHz
• Transmitter Power (EIRP):
  • 2.4 GHz: < 26 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
  • 5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)
  • 5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)

Links

• Quick Start Guide
• Safety Guidelines
• User Manual

Includes

• 1x DJI Mini 5 Pro
• 1x DJI RC 2
• 3x DJI Mini 5 Pro Intelligent Flight Battery
• 1x DJI Mini 5 Pro Two-Way Charging Hub
• 1x DJI Mini 5 Pro Shoulder Bag
• 1x DJI Mini 5 Pro ND Filter Set (ND8/32/128)
• 3x DJI Mini 5 Pro Spare Propeller (Pair)
• 1x DJI Mini 5 Pro Storage Cover
• 1x USB-C to USB-C Data Cable
• 1x RC-N Series RC Cable (USB-C Connector)
• 1x RC-N Series RC Cable (Lightning Connector)
