Description

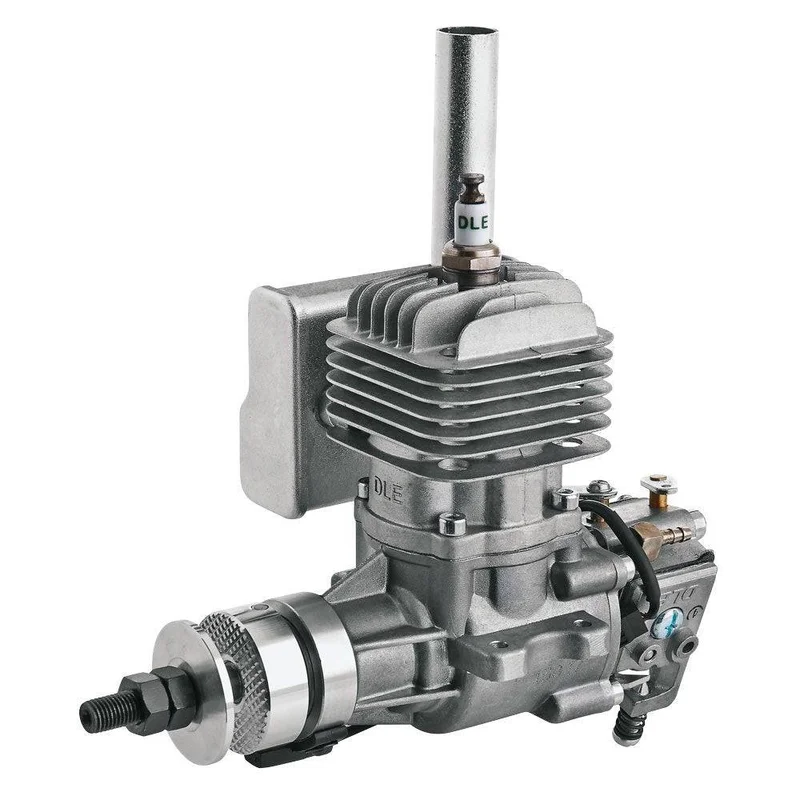

DLE20 20CC Gas Airplane Engine Single Cylinder Two Stroke Aircraft Engine for RC Model Planes
The DLE-20 Gas Engine includes a beam mount for fast, easy installation. A rear pumper carb simplifies installation and adjustment. A generous package of “extras” and electronic ignition for starting ease make the DLE-20 an attractive, affordable option with the power to really move your Radio-Control aircraft. Flies on a 30 to 1 gas to 2-cycle engine oil mixture and delivers 2.5 horsepower at 9,000 rpm. Total engine weight is less than two pounds – perfect power for larger planes at minimum weight.
- Stock Number: DLEG0020
- Displacement: 20 cc (1.22 cu in)
- Bore: 1.3 in (32 mm)
- Stroke: 1.0 in (25 mm)
- Weight: 28.9 oz (820 g)
- RPM Range: 1,750-9,000
- Output: 2.5 hp @ 9,000 rpm
- Requires: Gasoline, 2-cycle oil, ignition battery, and propeller
- Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension, and manual
- Suggested Propellers: 14×10, 15×8, 16×6, 16×8, 17×6
- Suggested Break-in Prop: n/a
Technical Data:
- Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required with LiPo or LiFe pack.)
- Compression Ratio: 10.5:1
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: DLEG2126
- Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
