Description

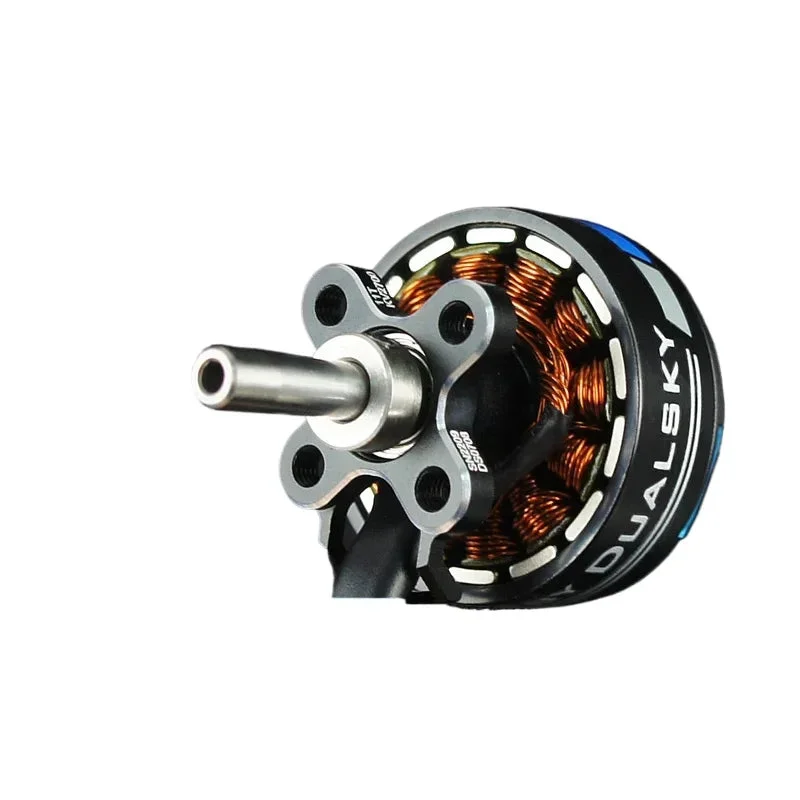

The Dualsky XM2826EG is a high-efficiency external rotor brushless motor engineered for lightweight gliders and electric sailplanes such as F5K. eRES (F5L). and ASFC P5B class aircraft. With a compact size. hollow 4mm shaft. and precise 12N14P configuration. it offers powerful performance for folding propeller setups and smooth throttle response for competition-grade remote-controlled gliders.
Available in three KV options. the motor supports a wide range of battery voltages (2S to 4S) and propeller combinations. optimized for thermal soaring. high-efficiency cruising. and FPV wing applications.
✅ Model Variants & Specifications:
| Model | KV | Weight | Max Power | Max Current | Voltage (S) | Efficiency Current | Torque (mNm) |
|---|---|---|---|---|---|---|---|
| XM2826EG-11 | 2700KV | 41g | 360W | 45A | 2S-3S | 22.5A | 230 |
| XM2826EG-14 | 2130KV | 41g | 320W | 40A | 2S-3S | 20A | 260 |
| XM2826EG-19 | 1580KV | 41g | 280W | 38A | 3S-4S | 16A | 280 |
✅ Shared Technical Details:
-
Configuration: 12N14P
-
Motor Dimensions: Φ28.6mm × 26.4mm
-
Shaft Diameter: 4mm (hollow)
-
Mounting Pitch: 16mm × 16mm (4 × M3)
-
Input Connector: GC3.5
-
Idle Current . All rights reserved.
