Description

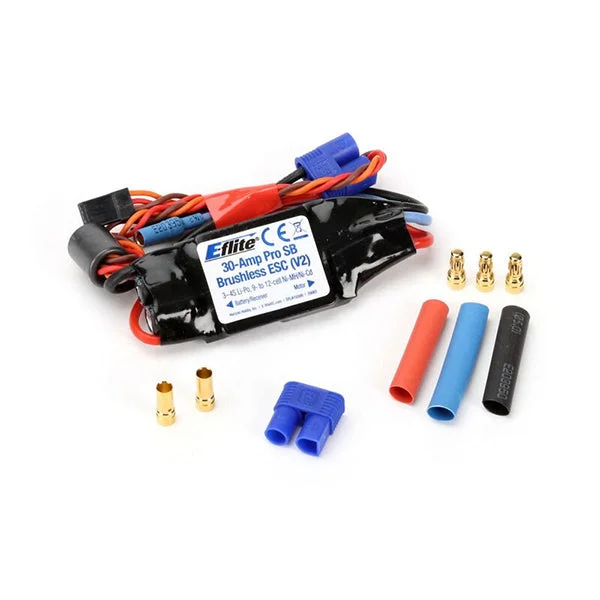

This is the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC V2. This ESC is high-quality, efficient, sensorless and has an integrated Switch-Mode BEC. It is capable of up to 30 amps continuous current when using 3- to 4-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage. It has advanced programmable features such as low voltage cutoff, braking, timing and throttle input range.
Key Features:
- Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
- 3.5A continuous current, 5V Switch-Mode BEC Circuit
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-size servos with the BEC
- 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing – 5 user-selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors—E-flite EC3 connector on battery input and 3.5mm gold bullet connectors on motor output leads
Product Specifications:
| BEC Voltage | 3.5A continuous |
| Brakes | Yes |
| Connector Type | EC3 |
| Input Voltage | 10.8?14.8V |
| Maximum Burst Current | 35A |
| Maximum Continuous Current | 30A |
| Output Connector | 3.5mm Bullet |
| Part Type | Electronics |
| Programmable | Yes |
