Description
Fitment Note:
The Losi 1/6 Super Baja Rey 2.0 Desert Truck requires using the Losi Super Baja/Rock Rey 1/5 Servo Mount (LOS351010 – Sold Separately)
The Axial 1/6 SCX6 Rock Crawler requires using the servo mount adapters included with the kit or in the front servo mount with engine cover (AXI251005 – Sold Separately)
Includes:

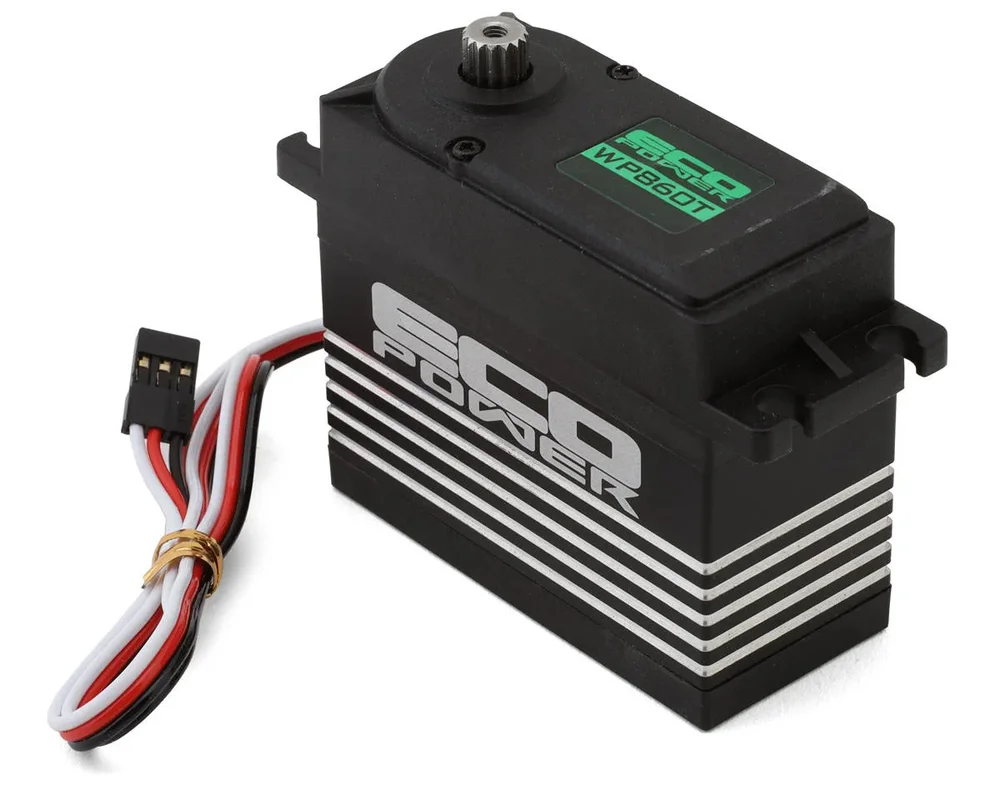

- (1) WP860T Servo
- Composite servo horns and mounting grommets
Servo Specifications:
| Scale: | 1:5 |
|---|---|
| Voltage Range: | 6.0V – 8.4V |
| Operating Temperature: | 14° to 140° F (-10 to +60° C) |
| Speeds: | 6.0V: 0.15/60° sec 8.4V: 0.13/60° sec |
| Torque: | 6.0V: 667 oz-in (48 kg-cm) 8.4V: 861 oz-in (62 kg-cm) |
| Motor Type: | Brushed |
| Output Shaft: | 15 Tooth |
| Gears: | Steel |
| Weight: | 195g |
| Pulse/Frequency: | 1520 / 330hz |
| Dimensions: | 2.36×1.18×2.5in (60x30x63x35mm) |
| Height (Base to Mount): | 40.8mm |
