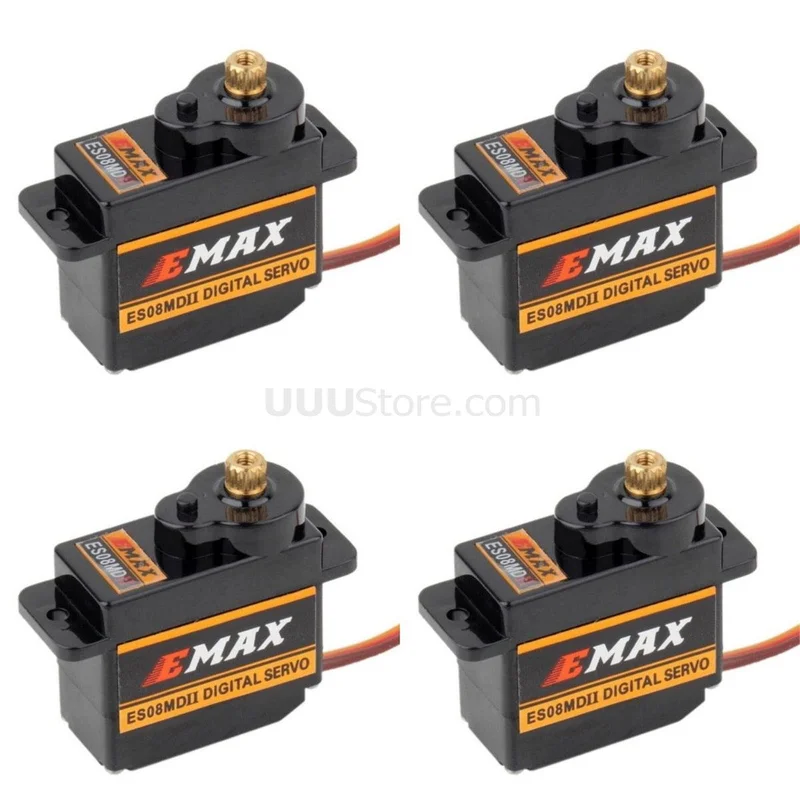

EMAX ES08MDII ES08MD II Digital Servo 12g/ 1.6/2.0 kg.cm High-speed Mini Metal Gear for RC Model Boat Car Robot

Description

ES08MD II Digital Servo SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembled class

Technical parameters: KV1100

Size: As show

Remote Control Peripherals/Devices: Servos

Recommend Age: 12+y.14+y

RC Parts & Accs: Servos

Origin: Mainland China

Model Number: EMAX ES08 MDII

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

EMAX ES08MDII ES08MD II Digital Servo 12g/ 1.6/2.0 kg.cm High-speed Mini Metal Gear for RC Model Boat Car Robot

ES08MD II Specifications:

Operating voltage: 4.8V~6.0V

STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900usec

Operating speed: 0.12sec/60º  4.8V; 0.10sec/60º  6V

Stall torque: 1.6 kg.cm / 21.0 oz.in  4.8V. 2.0 kg.cm / 28.0 oz.in  4.8V

Dead band: 1 uSec

Gear Material: Metal

Connector wire length: 25 cm

Connector type: Futaba/JR compatible

• Mini SERVO (ESOSMD) SERIES SERVO ESOSMd SPECIFICATIONS 19.65 415 Unenneiocc 476 UI Dutectue Caunler



  • ES08MD Specifications:

    Size: 32 x 11.5 x 24 mm(1.25 x .45 x .94in)
    Weight: 12g / 0.42oz
    Operating voltage: 4.8V~6.0V
    Operating speed: 0.10sec/60º at 4.8V; 0.08sec/60º at 6V
    Stall torque: 2.0/2.4 kg.cm 27.8/33.3 oz.in (4.8V/6v)
    Dead band: 1 uSec
    Gear Material: Metal
    Connector wire length: 25 cm
    Connector type: Futaba/JR compatible
