Description

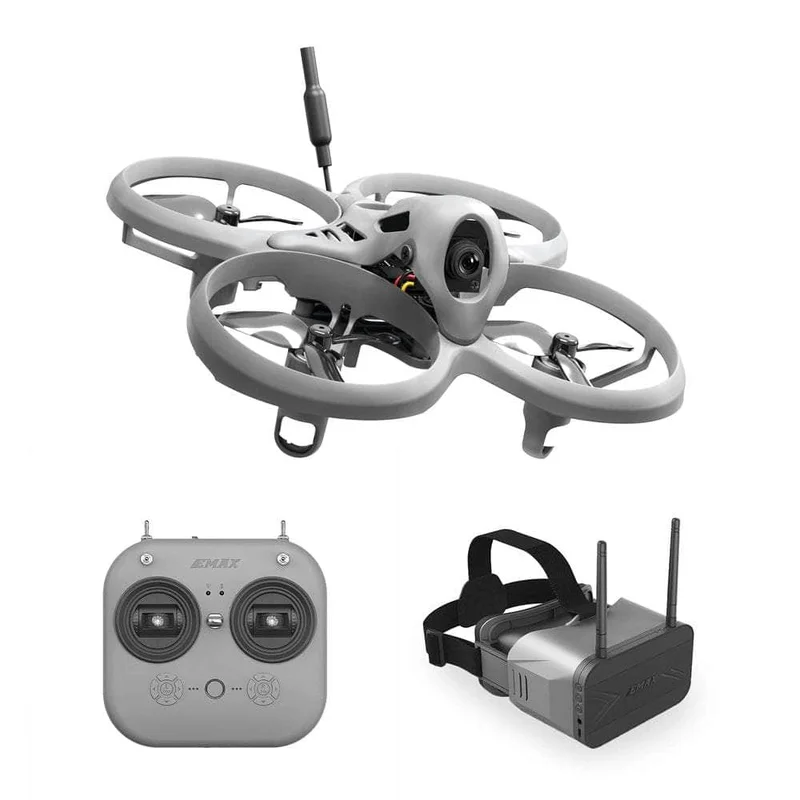

The EMAX Tinyhawk Lite RTF Kit is the perfect entry point into the whoop scene, giving new pilots everything they need in one box. It comes with a tough 75mm micro quad, analog FPV system, E8 radio, and Transporter 2 goggles for a true plug-and-play experience. Built for tight indoor spots but capable of small outdoor runs, it’s a smooth way to jump into FPV flying.
Check out our other RTF combos, all our pre-built quads, as well as the rest of our Emax selection!
All products containing batteries must be shipped by a ground shipping method.
Features
- All-in-one ready-to-fly kit: drone, radio, and goggles included
- Lightweight micro quad, perfect for indoor or small outdoor flights
- Crash-resistant frame built for beginners
- Simple, beginner-friendly transmitter
- Includes E8 Transmitter and Transporter 2 goggles (No DVR version)
- FPV camera for immersive first-person flying
- Budget-friendly way to start your FPV journey
Specifications
TINYHAWK LITE
- Flight Controller: STM32F411 (100MHz), 1S input, EMAX_TINYHAWKF4SX1280 Firmware
- Receiver: Built-in ELRS (2.4GHz), SX1280 RF module, CRSF protocol
- Configuration: Betaflight Configurator for VTX, OSD, and binding
- ESC: 4-in-1 brushed, 10A, DC 3.7–4.2V input
- FPV Camera: RunCam Nano 3 Analog
- VTX Power: 0/25mW/100mW/400mW
- VTX: 32-bit, 40CH, open-source
- Dimensions: 104 x 104 x 52mm
- Weight: ~37g (without battery)
- Motor: 0816 coreless DC 3.7V
- Propellers: HQ 40mm 3-blade
- Battery: 1S HV 750mAh
- Model: Tinyhawk Lite
- Wheelbase: 75mm
TRANSPORTER 2 GOGGLES
- Charging System: Built-in USB 5V–1A linear lithium-ion battery charging system
- Maximum Size: (Without antenna – Folded) 155x100x90mm
- Frequency: 5.8GHz（5658MHz-5945MHz)
- Video: VGA/D1/HD (Off/3min/5min/10min)
- Battery: 1300mAh Lithium-ion battery
- Screen resolution: 480X800
- DVR: No
- Weight (With battery): 398g
- Working Voltage: 4.2V-3.7V
- Screen size: 4.3 inch
- Type: Analog
E8 ELRS RADIO TRANSMITTER
- Charging System: Built-in USB 5V–1A linear lithium-ion battery charging system
- External interface: Micro USB,3.5mm Audio interface (wired coach interface)
- Frequency 2.4GHz (2400MHz-2483.5MHz)
- Maximum Size: L*W*H=150x140x45mm
- Battery: 18650 Lithium-ion battery
- Weight (Without Battery): 260g
- Number Of Channels: 8CH
- Working Voltage: 4.2V-3.3V
- Protocol: ELRS
- Output: 22dbm
Includes
- 1x EMAX Tinyhawk Lite 75mm Micro Whoop – ELRS 2.4GHz
- 1x EMAX Transporter 2 Goggles
- 1x EMAX E8 Radio Transmitter
- 1x Action Camera Mount
- 4x Spare Propellers
- 1x Battery Charger
- 1x Hardware Kit
- 1x Battery
