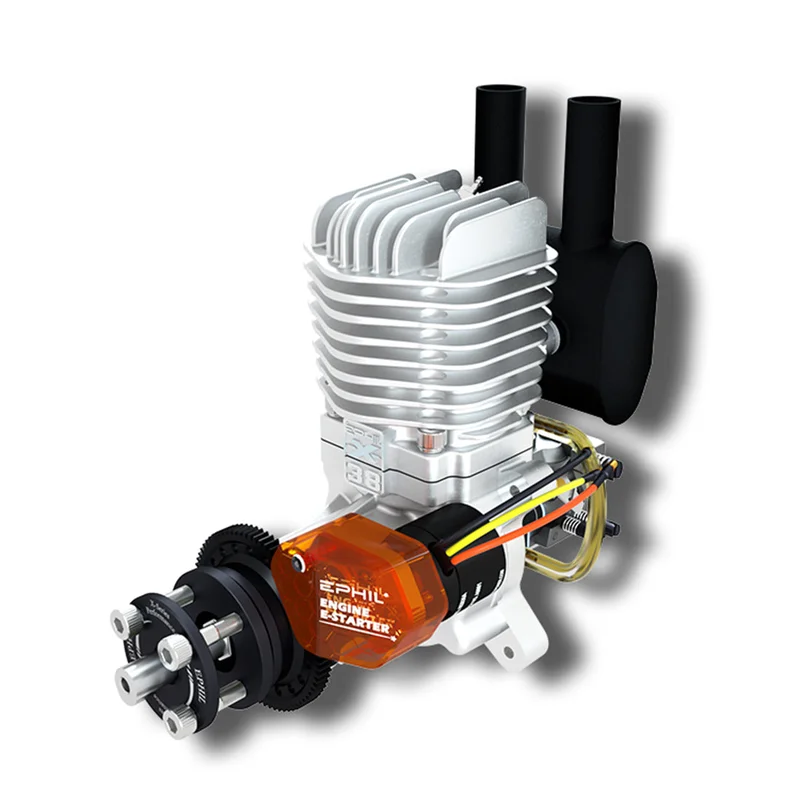

EPHIL XG-38cc-R Pro Electric Starter Two-Stroke Single Cylinder Side Exhaust Gasoline Engine Model for Fixed-Wing Aircraft Models

Description

Product parameters:
Material: Metal
Color: As shown in the picture
Brand: EPHIL
Model: X-38cc-R Pro
Displacement: 38cc (2.33 cu in)
Performance: 4.2 HP
Speed ​​Range: 1800-7300 RPM (Test Paddle-20*9)
Bore: 39 mm (1.54 in)
Stroke: 32.5 mm (1.28 in)
Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)
Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)
Compression Ratio: 9:1
Lubrication Ratio: 30:1 (Gasoline: Lubricating oil)
Power supply voltage-Ignition Voltage: 6-14V
Glow Plug Type-Glow Plug Type: E8 (or OS G5) glow plug
Applicable propeller specifications-Recommended Propeller: 19×8; 19×10; 20×8; 20×10
Main engine weight-Weight of Main Engine: 1216g
Exhaust pipe weight-Weight of Muffler Set: 73g
Aluminum standoffs weight-Weight of Aluminum Standoffs Set: 100g
Glow plug weight-Weight of Spark Plug: 3.6g
Power supply weight-Weight of CDI (Ignition): 30g
Electric control weight-Weight of ESC: 36g
Electric starter weight-Weight of Starter: 85g
Total weight-Total Weight: 1542.5g (3.4 lb)
Suitable age: 16+;

Product features:
1. Precision manufacturing, stable operation, excellent quality, strong power, easy maintenance, quick start.
2. The Pro upgraded engine is equipped with electric start, with a dedicated electric regulator, so that your aircraft can be started simply and quickly with one button. Countless tests and good reputation have proved its reliability.
3. The standard glow plug can show stronger stability in high temperature and high pressure cylinders. Tests show that its life is greatly improved compared to ordinary spark plugs.
4. It is standard with a special exhaust pipe that can be connected to the smoke system. You can install the smoke system very conveniently, so that your aircraft will shine like a meteor in the sky.
5. Our engine is suitable for various types of fixed-wing aircraft models, providing your aircraft with strong power performance, and good working performance will not let you down.

Packing list: engine*1, carburetor*1, exhaust pipe*1, glow plug*1, electronic igniter*1, engine bracket*1, propeller shaft adapter*1, gear-driven propeller shaft*1, electric starter*1, ESC*1, user manual and warranty card*1
