Description
Product Parameters:
Material: Metal
Color: As Shown
Brand: EPHIL

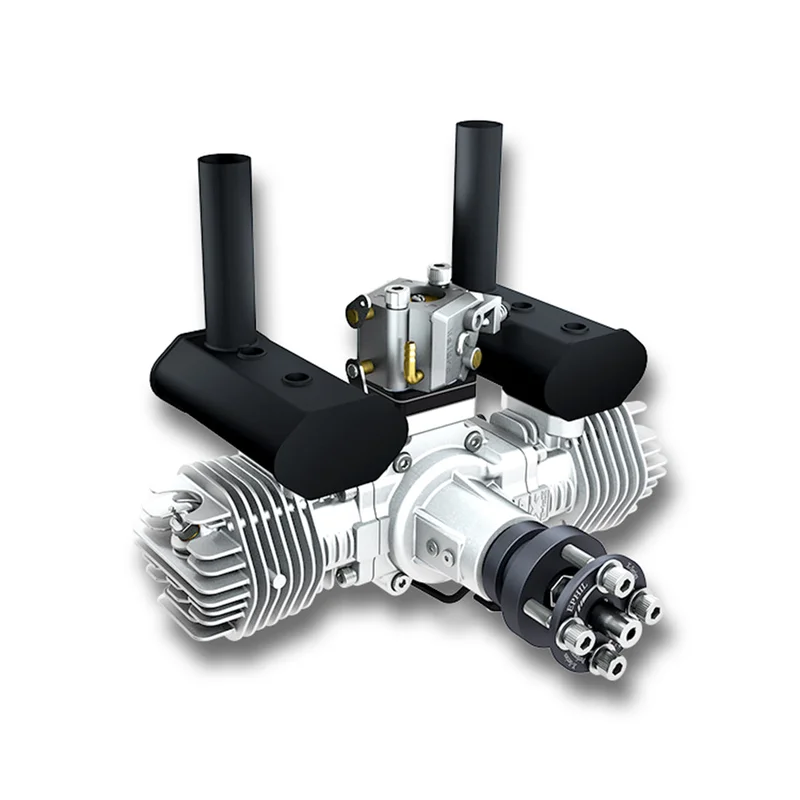

Model-Model: X-40cc-T
Displacement: 40cc(2.44 cu in)
Performance-Performance: 4.6 HP
Speed Range: 1800-8300 RPM (Test Paddle-20*8)
Bore: 32 mm (1.26 in)
Stroke: 27 mm (1.06 in)
Rally-Static Thrust: 11.5 kg @ 100 m ALT (25.4 lb @ 328 ft ALT)
Rally-Static Thrust: 9.0 kg @ 1800 m ALT (19.8 lb @ 5900 ft ALT)
Compression Ratio: 9:1
Lubrication Ratio: 30:1 (Gasoline:Lubricant)
Supply Voltage – Ignition Voltage: 6-14V
Glow Plug Type: E8 (or OS G5) Hothead
Applicable Recommended Propeller: 20×8; 20×10; 19×8; 19×10
Weight of Main Engine: 1190g
Weight of Exhaust Pipe-Weight of Muffler Set: 136g (L&R Exhaust Pipe;Screws)
Weight of Aluminum Standoffs Set-Weight of Aluminum Standoffs Set: 84g
Weight of Glow Plug: 3.6g*2
Weight of Power Supply-Weight of CDI(Ignition): 30g
Total Weight-Total Weight: 1786g (3.94 lb)
Suitable age: 16+
Product Features:
1. Precision manufacturing, stable operation, excellent quality, strong power, easy maintenance, quick start.
2. Pro upgraded model engine is equipped with electric start, with special ESC, so that your airplane can be started simply and quickly with one button. Countless tests and good reputation have proved its reliability.
3. The standard electric heat plug can show more stability in high temperature and high pressure cylinders. Tests show that its lifespan is substantially improved compared to ordinary spark plugs.
4. Standard equipped with a special exhaust pipe that can be connected to the smoke pulling system, you can install the smoke pulling system very conveniently and make your airplane brilliant like a shooting star in the sky.
5. Our engine is suitable for all kinds of fixed-wing airplane models, to give your airplane a strong power performance, good working performance will not let you down.
Packing list:
Engine*1
Carburetor*1
Exhaust pipe*1
Electric plug*2
Electronic ignition*1
Engine bracket*1
Manual and warranty card*1
