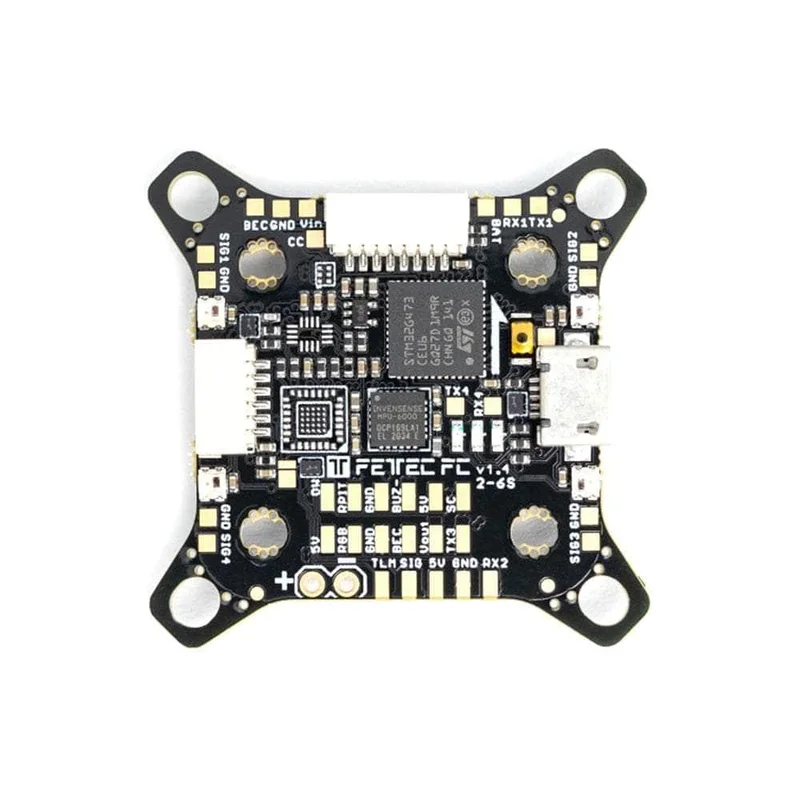

FETtec KISS G4-N V1.7 2-6S 30×30 / 20×20 Flight Controller

Description

The FETtec KISS G4-N 2-6S 30×30 / 20×20 Flight Controller features the latest STM32G4 processor. Providing unparalleled processing power to your aircraft.  Along with an IIM-42652 SPI gyro, two 5v BECs, 6-27V (2-6S) power handling, and a host of other features, the G4 from FETtec is on the cutting edge of Flight Controller technology.

Note: This G4-N is a variation on the original G4 and is optimized for digital use. If you are flying analog, you will need the original G4 with built-in OSD chip.

Check out our other flight controllers, as well as the rest of our FETtec selection!

Specifications

• Input Voltage: 2-6S LiPo
• MCU: STM32G4
• Gyro: IIM-42652 SPI
• OSD: No
• UARTs: 5 Sets
• ESC Connections: Yes
• Firmware: KISS firmware
• BEC: 3.3V, 5V, 16V
• Current Sensor: Yes
• Buzzer: Yes
• Barometer: No
• Black Box: No
• DJI Compatible: Yes
• Mounting Pattern: 30×30 / 20×20
• Dimensions: 37.2×37.2mm
• Weight: 5.37g

Includes

• 1x FETtec KISS G4-N 2-6S 30×30 / 20×20 Flight Controller
• 1x Capacitor
• 1x Wiring Harness
