Description

Flysky FS-X8B 8CH 2.4G Receiver  SPECIFICATIONS

Brand Name: U-Angel-1988

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Receivers

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: FS-X8B receiver

Remote Control Peripherals/Devices: Receivers

Tool Supplies: Battery

Technical parameters: Value 2

Model Number: FS-X8B receiver

Four-wheel Drive Attributes: FS-X8B receiver

Flysky FS-X8B 2.4G PPM i-BUS 8CH Receiver Compatible With FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter

Features:

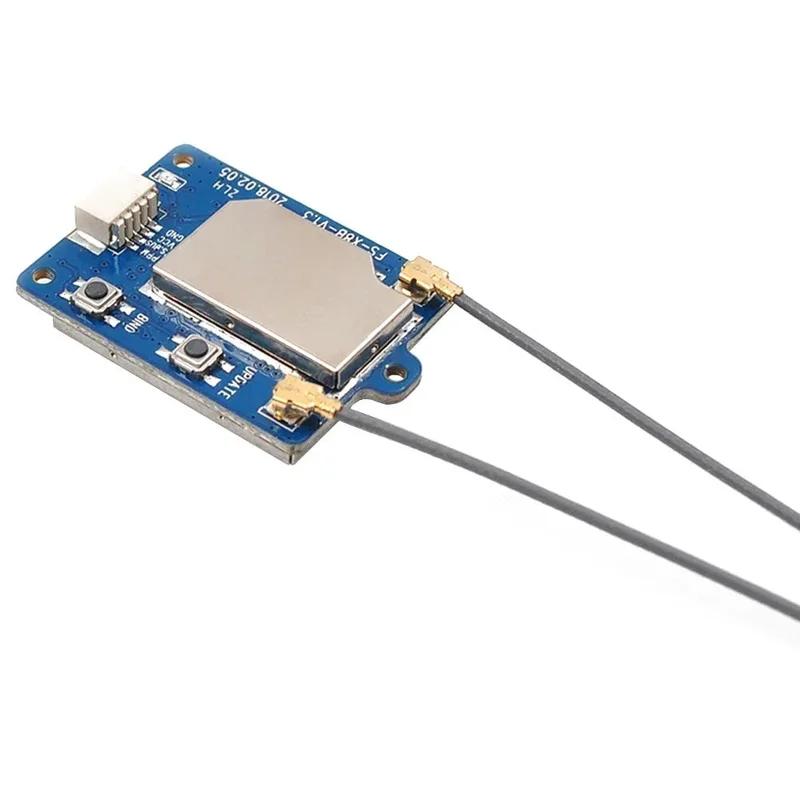

The FS-X8B is a single antenna bidirectional receiver using the AFHDS 2A (Second Generation Automatic Frequency Hopping Digital System) protocol.
It’s compact. easy to install and can output using a standard PPM ori-BUS signal.
Compatible transmitter: FS-Nirvana. FS-i6. FS-i6s. FS-i6x. FS-i8. FS-i10 Transmitter.
Function: Bi-Directional Transmission Support PPM/i-Bus. the i-Bus signal port. up to 8 channels support.
Range without ground interference (Transmitting and receiving 1m from the ground): >300m.

Specifications:
Product Model: FS-X8B
Product Name: Receiver
Channels: 8
PPM/i-BUS
Frequency Range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm(EU)
Receiver Sensitivity: – 92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna lenghth: 93mm (Double Antenna)
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground:more than 300m
Channel Data: 1500us
Range: 1000 ~ 2000us
Size: 32 * 22 * 7mm
Weight: 3.7g
Certificate: CE. FCC

5 FlY Sky 8CH XBB Receiver Compatible with FS-NV14 FS i6 FS-6s FS6x FS-8 FS-10 FS-11 FS-12
