Description

FlySky FTr10  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y.14+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Origin: Mainland China

Model Number: FTr10

Material: Composite Material

For Vehicle Type: Cars

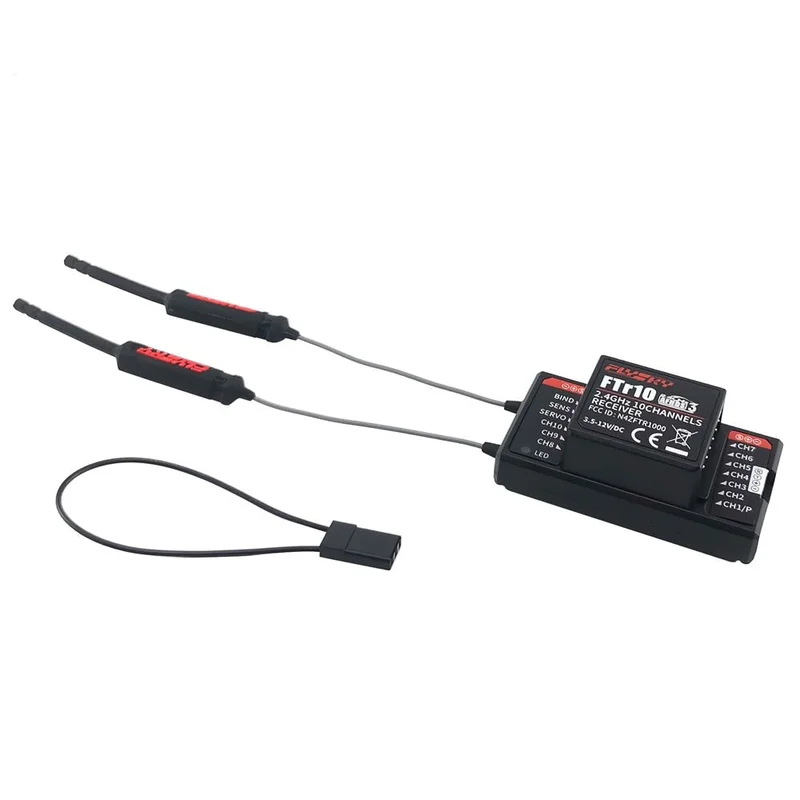

FlySky FTr10 2.4G 10CH Two-Way Dual Antenna PPM/IBUS PL18 AFHDS3 Mini Receiver

The receiver with 10 channel. 2.4G wireless frequency. adopt AFHDS 3 (third-generation automatic frequency hopping digital system). dual-antenna bidirectional transmission. its unique design can save installation space. and can output standard PPM signals and i-BUS signals. Suitable for model: Airplane. glider. helicopter. multi-axis aircraft. suitable for Flysky PL18 transmitter. easy install. and use.
【Receiver】 Flysky FTr10 2.4G 10CH receiver. adopt AFHDS 3 (third-generation automatic frequency hopping digital system). dual-antenna bidirectional transmission. its unique design can save installation space. and can output standard PPM signals and i-BUS signals.
【Specifications】Antenna type: double copper tube antenna (103mm * 2); Power: 3.5-12V; RSSI: Supported; Data interface: PWM / PPM / i.bus / s.bus / UART; Online Update: Support.
【2.4G mode】 Automatic frequency second-generation digital system.
【Suitable Transmitter and Models】Suitable for model: Airplane. glider. helicopter. multi-axis aircraft. suitable for: Flysky PL18 transmitter. easy install and use.

Specifications:
Item: Receiver
Product model: FTr10
Main color: Black
Wireless frequency: 2.4G
PWM channel: 10
Wireless protocol: AFHDS 3
Remote control distance: 10KM (open and no interference limit distance)
Antenna type: double copper tube antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data interface: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Support
Transmission power: ＜20dBm(EU)
Dispaly: LED indicator
Size: 5*2.8*2cm
Suitable for model: Airplane. glider. helicopter. multi-axis aircraft
Suitable for: Flysky PL18 transmitter
