Description

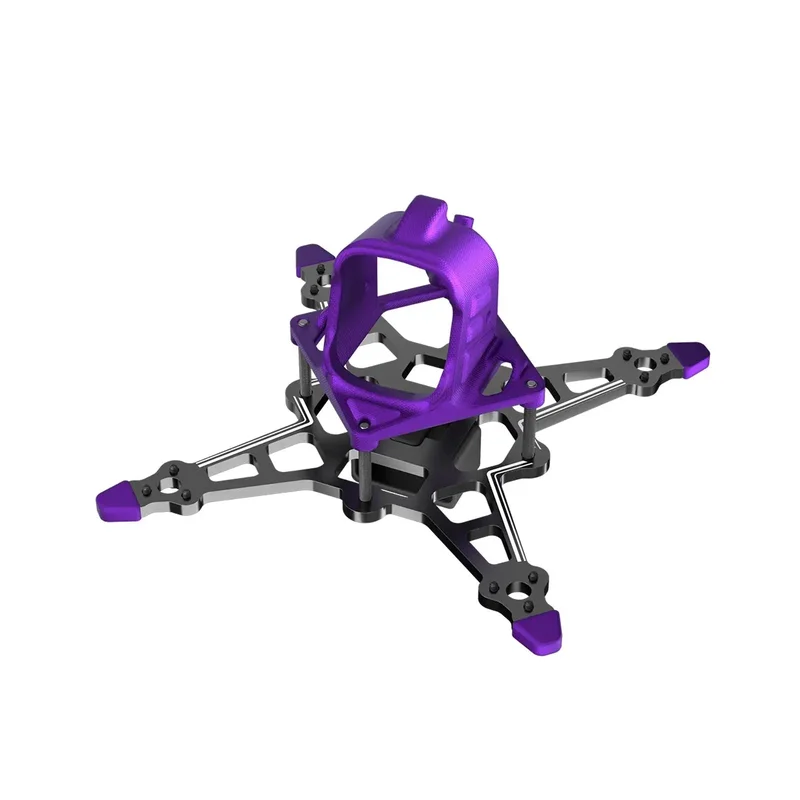

Flywoo Firefly16 / 18 1S Nano Baby V3 Frame Kit
About this product
The Firefly 16/18 1S Nano Baby V3 Frame Kit, developed by FLYWOO, is an ultra-lightweight and compact frame solution designed for micro drones. It offers flexible size options (16 or 18 versions), enabling you to build high-performance Nano Baby-class drones with ease.
Specifications:
| Brand |
FLYWOO |
| Model |
Firefly16 / 18 1S V3 |
| Main Board Thickness |
2mm |
| Flight Control Hole Position |
25.5×25.5mm |
| Motor Position |
6.6mm |
| Propeller Size |
40mm x3 (16 ) / 45mm x2 (18) |
| Weight |
7.9g(16) / 8g(18) |
Recommmend Configur16ation :
| Model |
Firefly18 1S Nano Baby V3 Analog Tiny Drone |
| Frame |
Firefly18 1S Nano Baby V3 O4 Frame kit |
| Electronic |
GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO |
| Transmission |
GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO |
| Camera |
Flywoo 1S Nano Camera V3 |
| Propeller |
HQ 45MMX2 (Firefly18)/ HQ 40MM X3 (Firefly 16) |
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16) |
| Battery Connector |
A30 |
| Model |
Firefly16 / 18 1S Nano Baby V3 O4 Tiny Drone |
| Frame |
Firefly16 / 18 1S Nano Baby V3 O4 Frame kit |
| Electronic |
GOKU F405 HD 1S 1S 5A AIO W/TXCO ELRS （BNF-DJI without ELRS RX） |
| Transmission |
DJI O4 Air unit |
| Camera |
DJI O4 Camera |
| Propeller |
HQ 45MMX2 (Firefly18)/ HQ 40MM X3 (Firefly 16) |
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16) |
| Battery Connector |
A30 |
| Model |
Firefly 16 / 18 1S Nano Baby V3 HDZero Tiny Drone |
| Frame |
Firefly16 / 18 1S Nano Baby V3 HDZero Frame kit |
| Electronic |
GOKU F405 HD 1S 1S 5A ELRS AIO |
| Transmission |
HDZero Whoop Lite VTX |
| Camera |
HDZero Nano V3 Camera |
| Propeller |
HQ 45MMX2 (Firefly18)/ HQ 40MM X3 (Firefly 16) |
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16) |
| Battery Connector |
A30 |
| Model |
Firefly 16 / 18 1S Nano Baby V3 Walksnail Tiny Drone |
| Frame |
Firefly16 / 18 1S Nano Baby V3 Walksnail Frame kit |
| Electronic |
GOKU F405 HD 1S 1S 5A ELRS AIO |
| Transmission |
Walksnail Avatar HD Mini 1S VTX |
| Camera |
Walksnail Avatar HD Nano Camera |
| Propeller |
HQ 45MMX2 (Firefly18)/ HQ 40MM X3 (Firefly 16) |
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16) |
| Battery Connector |
A30 |
