Description

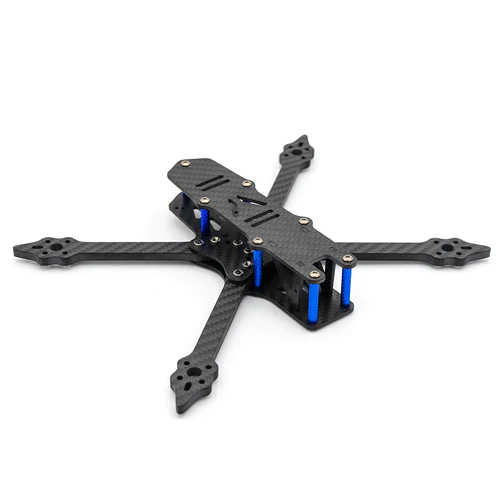

Foxeer Freestyle 5″ Mega Deadcat Frame
Elevate your flying experience with the Foxeer Freestyle 5″ Mega Deadcat Frame. Made from Toray T700 carbon, this frame blends agility with resilience. Its versatile compatibility with systems like O3, Analog, and Vista ensures a seamless flight every time.
Specifications
| Material | Toray T700 Carbon |
| Wheelbase | 5″: 238mm; 6″: 269mm |
| Middle Mouting Hole | 30.5×30.5mm |
| Rear Mouting Hole | 20×20/25.5*25.5/30.5×30.5mm |
| Camera Size | 19×19/20x20mm |
| Supported System | O3/Analog/Vista/Walksnail/HDZero |
| Weight | 5″: 136g; 6″: 152g (Excluded TPU) |
| Packing List | |
| 5mm Arm 16~19mm mounting – 4 | |
| 2mm Top Plate – 1 | |
| 2.5mm Middle Plate – 1 | |
| Balance Pole for 6″ – 2 | |
| 2.5mm Bottom Plate – 1 | |
| CNC Side Plate – 2 | |
| Aluminum Column M3*Φ5.5*23 – 6 | |
| SMA Antenna Mount – 1 | |
| Bottom Plate Front Protective Mount – 1 | |
| M5 Gopro Mount – 1 | |
| Arm Guard – 4 | |
| 915 Rx Antenna Mount – 1 | |
| Isolation Column – 2 | |
| Capacity Supporter – 1 | |
| 5″ DJI O3 VTx Mount – 1; 6″ DJI O3 VTx with 250GPS Mount | |
| 6″: 250GPS Mount – 1; | |
| UFL Antenna Mount – 1 | |
| Cam Spacer – 2 | |
| M5 Nut – 1 | |
| M5*20 Screw – 1 | |
| Battery Anti-slip Mat -1 | |
| 250*20mm Strap – 1 | |
| 220*20mm Strap – 1 |
