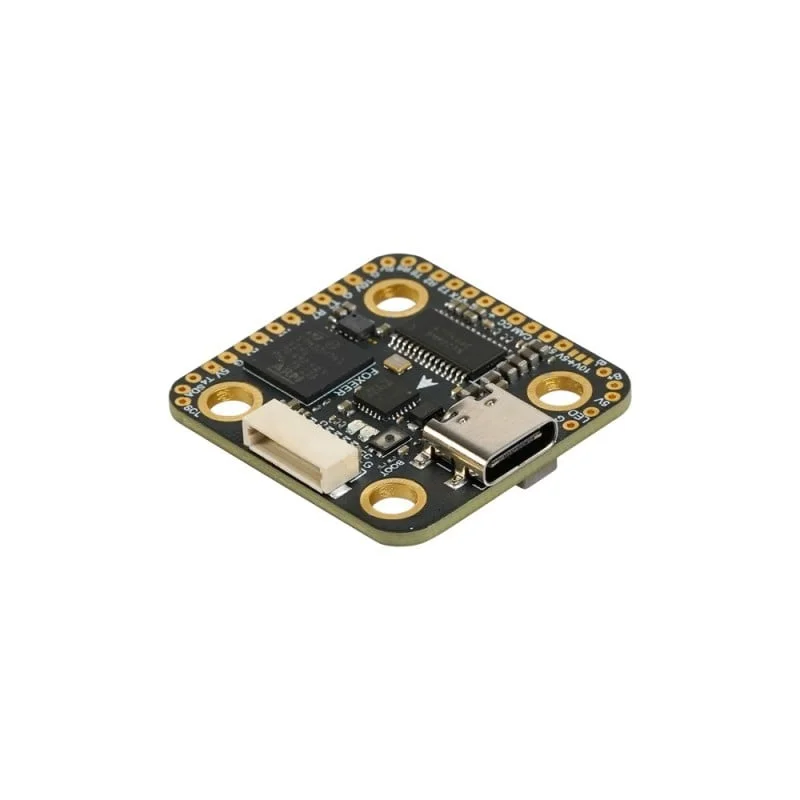

Foxeer H7 Mini MPU6000 FC 8S Dual BEC Barometer Flight Controller

Elevate your build with the Foxeer H7 Mini, a compact flight controller that packs flagship-level performance into a 20x20mm form factor. Engineered for pilots who demand the best, this FC features a powerful STM32H743 processor, a classic MPU6000 gyro, and robust power handling up to 8S. It’s the perfect, feature-rich brain for your high-performance FPV drone kit, whether you’re building for freestyle, long-range, or racing.

Flagship H7 Processing Power

At the heart of this board is a top-of-the-line STM32H743 MCU, running at 480MHz. This provides an incredible amount of processing power to handle all modern flight firmware features with ease. Paired with the legendary MPU6000 gyro, known for its clean and reliable signal, the Foxeer H7 Mini delivers a precise, smooth, and locked-in flight experience.

Ready for High-Voltage & Digital FPV

The H7 Mini is built for modern FPV drone systems. It supports a wide input voltage range from 4S all the way up to 8S LiPo. It features a powerful dual BEC system, including a dedicated 10V @ 2A BEC designed to provide clean, stable power to demanding digital FPV systems like the DJI O3 Air Unit, preventing video dropouts or performance issues.

Packed with Connectivity & Features

This flight controller doesn’t compromise on connectivity. It offers 6 full hardware UARTs for all your peripherals like your receiver, GPS, and VTX control. It also includes an onboard barometer for altitude sensing, 16MB of blackbox flash memory for tuning, and even two dedicated servo outputs, making it an incredibly versatile drone part for complex builds.

Specifications

• MCU: STM32H743
• Gyro: MPU6000
• Barometer: DPS310
• OSD: BF OSD (AT7456E)
• Blackbox: 16MB Flash Memory
• Input Voltage: 4S – 8S LiPo
• BEC Outputs: DC5V/2A & DC10V/2A
• UARTs: 6 Sets
• Mounting: 20x20mm (M4 holes with M3 grommets)
• Weight: 5.6g

What’s in the Box?

• 1x Foxeer H7 Mini Flight Controller
• 4x M3 Silicone Mounting Grommets
