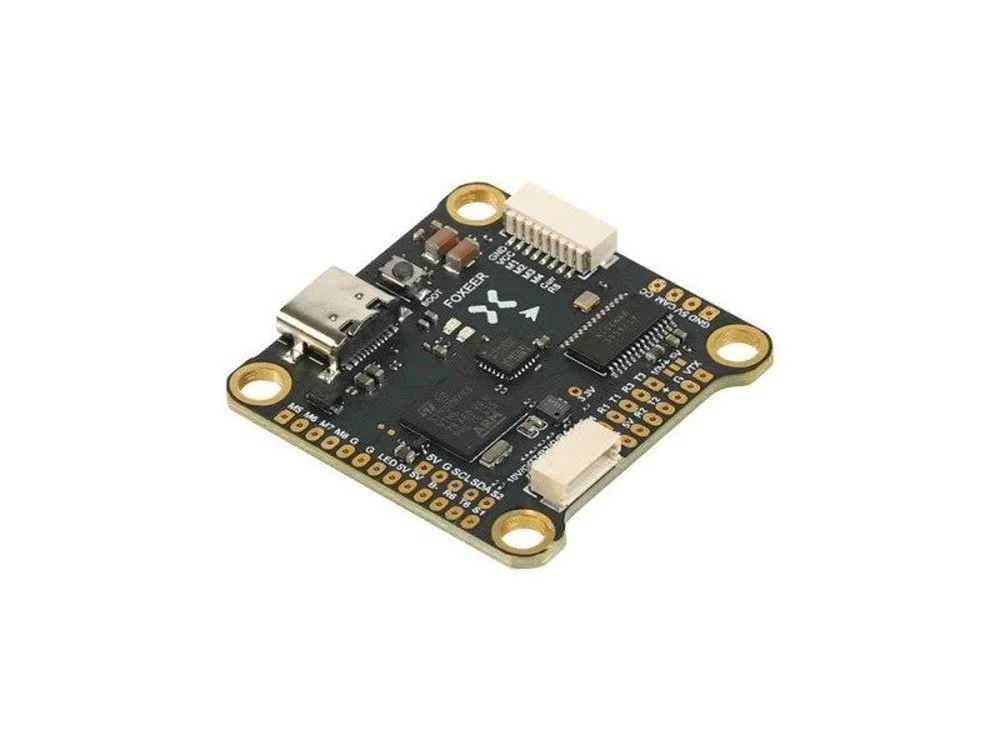

Foxeer H743 MPU6000 8S Flight Controller

Description

The Foxeer H743 MPU6000 8S Flight Controller offers reliable performance and precision control for UAVs. It features the latest H743 MCU, MPU6000 gyroscope, and 8S direct battery input, making setup and tuning easier and more efficient. Additionally, a built-in onboard OSD, current sensor, and voltage monitor provide valuable data for higher accuracy control.

Specifications:

• CPU: STM32H743
• Gyro: MPU6000
• Barometer: DPS310
• Power Supply: 4~8S LiPo
• BEC Output: 3.3V/0.5A;DC5V/2A;DC10V/2A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UART: 6 Sets+Rx8
• ESC Telemetry: RX8
• Buzzer: Yes
• Smart Audio: Yes
• Connector:  DJI/HDZero
• LED: 1 Set 2812 LED
• USB: Type-C
• Servo: S1,S2
• Firmware: Betaflight: FOXEERH743
• Size: 37*37mm
• Mounting Hole: 30.5×30.5mm, Φ4mm
• Weight: 7.8g

Includes:
1x Foxeer H743 MPU6000 8S Flight Controller
4x Rubber Anti-Vibration Grommets
1x Wire Set
