Description

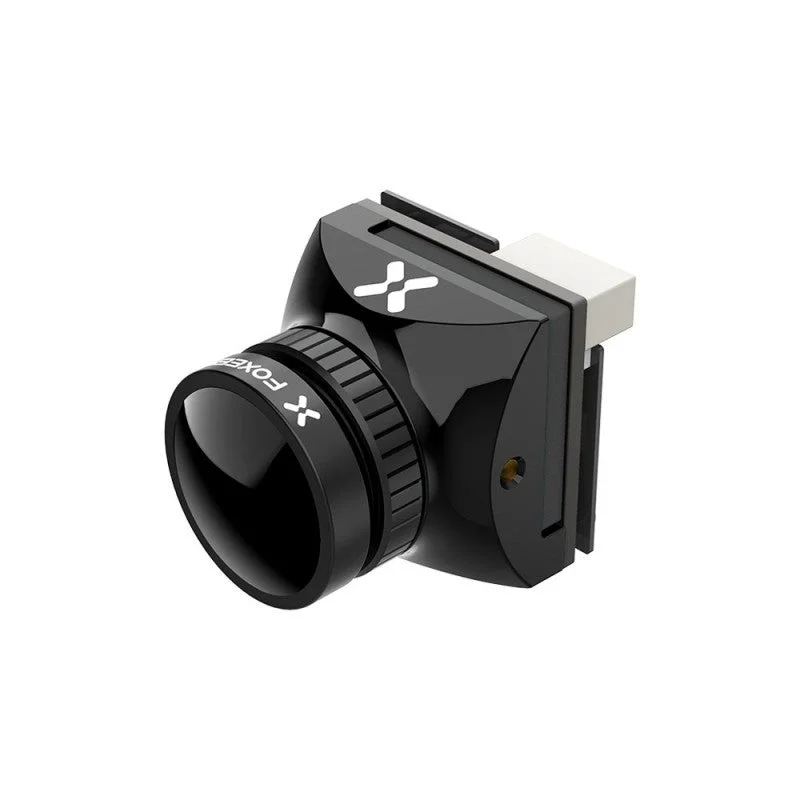

Foxeer T-Rex Micro FPV Camera Overview
The Foxeer T-Rex Micro FPV Camera is designed for top-tier performance in drone racing and freestyle flying. It features a 2MP CMOS sensor. delivering a crystal-clear 1500TVL resolution and ultra-low latency of just 2ms. With a Super WDR (110dB). the camera ensures excellent image clarity even in challenging lighting conditions. The switchable aspect ratio (4:3/16:9) and PAL/NTSC compatibility provide flexibility for different setups. while the wide FOV offers a broad view for enhanced situational awareness during flight.
Foxeer T Rex Micro Key Features:
- 1500TVL Resolution: High-definition image quality for sharp and detailed visuals.
- Low Latency: With a 2ms latency. it’s perfect for high-speed FPV racing.
- Super WDR (110dB): Ensures great visibility in high-contrast lighting conditions.
- Switchable Aspect Ratio: Easily toggle between 4:3 and 16:9 aspect ratios.
- Wide Field of View: 120° FOV-H in 4:3 and 155° FOV-H in 16:9 for broader visibility.
Foxeer T Rex Micro Specifications:
| Sensor Type | CMOS 2MP |
| Scale | 4:3/16:9 Switchable |
| Tv System | PAL/NTSC Switchable |
| Resolution | 1500TVL |
| FOV | 4:3 FOV-H: 120° FOV-D:150° |
| 16:9 FOV-H: 155° FOV-D:175° | |
| Shutter Speed | Auto |
| Flip | Up. Down. Left and Right |
| Video Output | CVBS Analog Signal |
| Latency | Low to 2ms |
| Minimum Illumination | 0.001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 110dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 5V~16V |
| Power Consumption | 115mA±15%@DC12V.270mA±15%@DC5V |
| Language | ENGLISH /中文 |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Dimension | 19*19mm |
| Weight | 8.6g(Exclude cable) |
Package Includes:
- 1 x Foxeer Micro T-Rex Camera
- 1 x OSD Board
- 1 x 2-pin OSD Cable
- 4 x Bracket Screws
- 4 x Gasket Rings
- 1 x Servo Cable
The Foxeer T-Rex Micro FPV Camera is the perfect solution for drone enthusiasts seeking clear. high-quality video. ultra-low latency. and a flexible configuration. Whether racing or freestyle flying. the T-Rex Micro ensures excellent performance across various lighting conditions.
Foxeer T Rex Micro Details
Capture high-quality footage with the Foxeer T-Rex Micro 1500TVL camera. featuring low latency and super wide dynamic range for crisp and clear images.
Exclusive Optimization for LED Manganese Full Weather ROCING Freestyle Super Low Latency Oool Lux Low Light 10 dB Super WDR
4.3 FOV-H 1209 FOV-0. 1500TVL Low Latency Super WDR FPV Camera with PAL/NTSC Switchable Support and OSD. Menu Remote Control. compatible with Foxeer FC. Features include 16:9 FOV-H. 155° FOV-0. 175° diagonal angle of view. 4.3mm/16.9mm lens. and camera control via 88CC Camera Control.
Foxeer T-Rex Micro 1500TVL Low Latency Super WDR FPV Camera. Features: M2 x 4 screws. RIA 2. and ring gasket. Includes 1x Foxeer micro 4x bracket screws. 1x OSD board. 1x servo cable. 1x Z-pin OSD cable. and 4x M2 x 4 screws.
