Description

SPECIFICATIONS

weight: 3g

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: FPV AIO Camera

Tool Supplies: Grinded

Technical parameters: Value 3

Size: 12*15*9.5mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: FPV Camera

Origin: Mainland China

Model Number: 5.8G 40CH 25mW VTX 600TVL

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

ReadyToSky is a professional FPV RC module accessory company. For inquiries regarding wholesale or bulk purchasing. please feel free to contact us.

Specifications:

1 . Frequency: 5.8G Channel: 40CH (5 frequency bands. 8 frequency points) Bands: A. b. C. d. E. F. Channel: 1.2.3.4.5.6.7.8 .

2. Transmitting power: 25mW.

3. Working voltage: 3V-5.5V

4. Working current: 230mA/5V.

5. Resolution: 600TVL M7 lens

6. Lens wide angle: 120° FOV 150° DFOV

7. Image format: PAL/NTSC adjustable

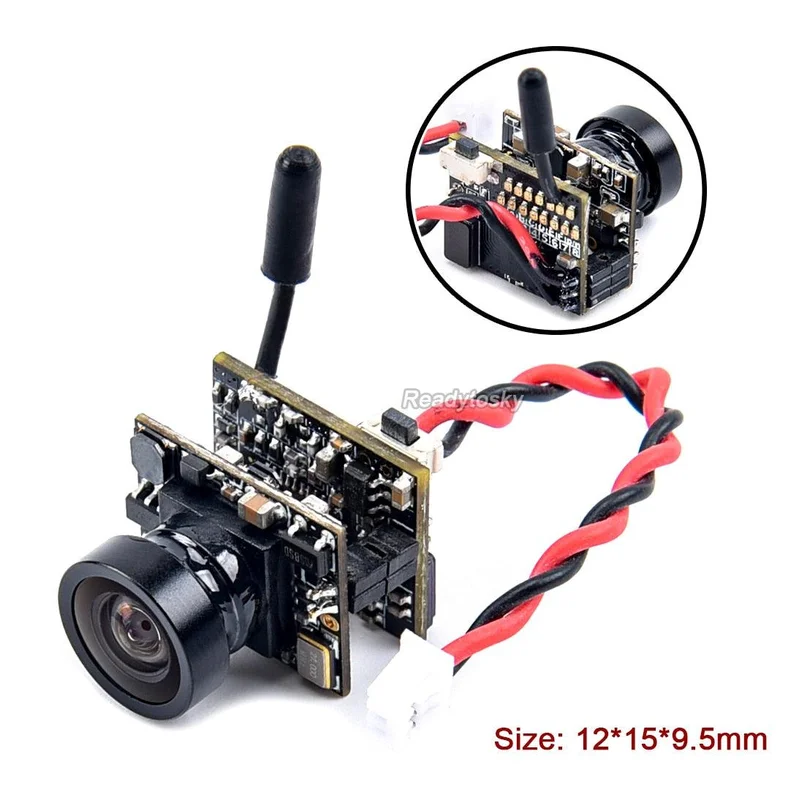

8. Size: 12*15*9.5mm.

Operating instructions:

1. Channel control:

(1) Operation method: the default frequency is b2 when power-on. short press the button to adjust channel 1-8; long press the button for 2s. the P/N indicator flashes and release. then short press the button to adjust bandsA-E; no operation After pressing the key for 5 seconds. it will automatically save and exit.

(2) Keep pressing the button 5S to switch between PAL/NTSC system. and switch to the set system after power on again.

(3) The channel has a memory function to save the parameters when the power is off.

1 x 25mW 600TVL FPV Camera
