Description

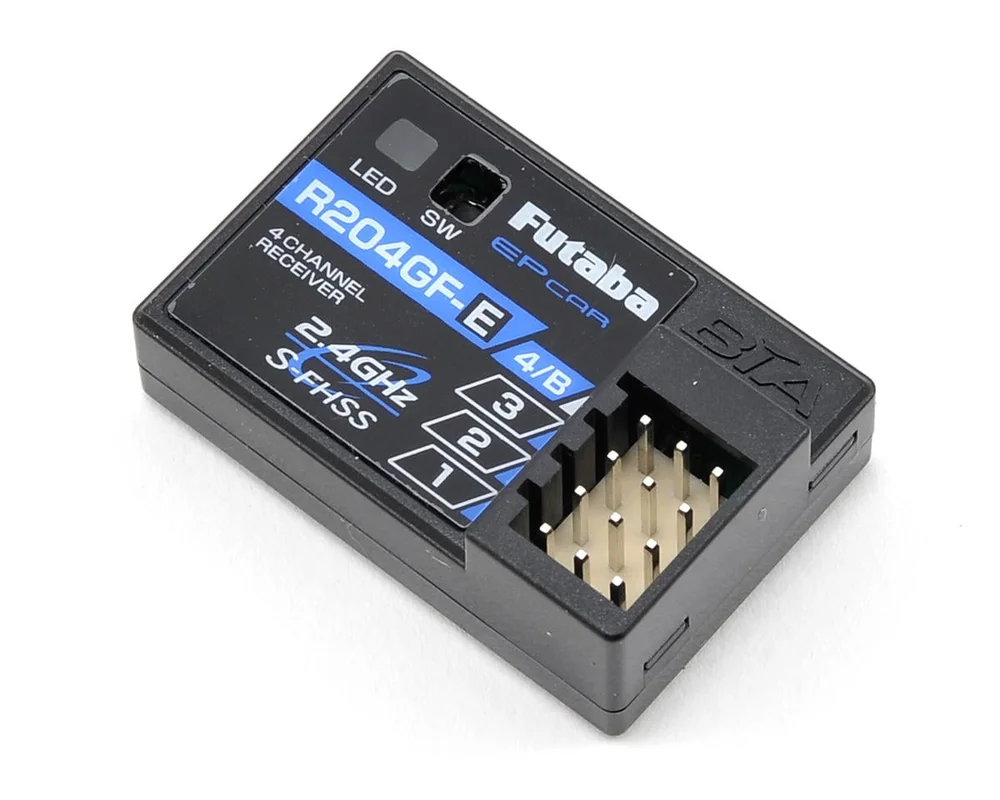

The Futaba R204GF-E High Voltage 2.4GHz S-FHSS 4-Channel Micro Receiver is compatible with Futaba FHSS and S-FHSS transmitters.
NOTE:
- The R204GF-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas powered models.
- This receiver is NOT compatible with 2.4GHz FASST or FASSTest systems. It will work with FHSS and T-FHSS transmitters, but transmitter mode will need to be changed to from T-FHSS/FHSS to S-FHSS mode.
Features:
- Ideally sized for 1/10 and 1/12 scale vehicles
- Compatible with any Futaba S-FHSS/FHSS system
- S-FHSS mode offers two operation modes: Normal and High Speed responses
- Internal antenna
Specifications:
Operating Voltage: 4.8 – 7.4V
Receiving Range: 230′ (70m)
Battery Failsafe: 3.8V
Current Drain: 30Ma (at no signal)
Size: 1.38×0.91×0.35″ (35.1×23.2x9mm)
Weight: 0.21oz (6g)
Number of Ports: 4
PWM Output: 3
SBUS Ports: 0
SBUS2 Ports: 0
FASST: No
Telemetry: No
S-FHSS: Yes
High Speed: Yes
High Voltage: Yes
Connector: J (STND)
Range: Full Range
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details…
This product was added to our catalog on April 16, 2012
