Description

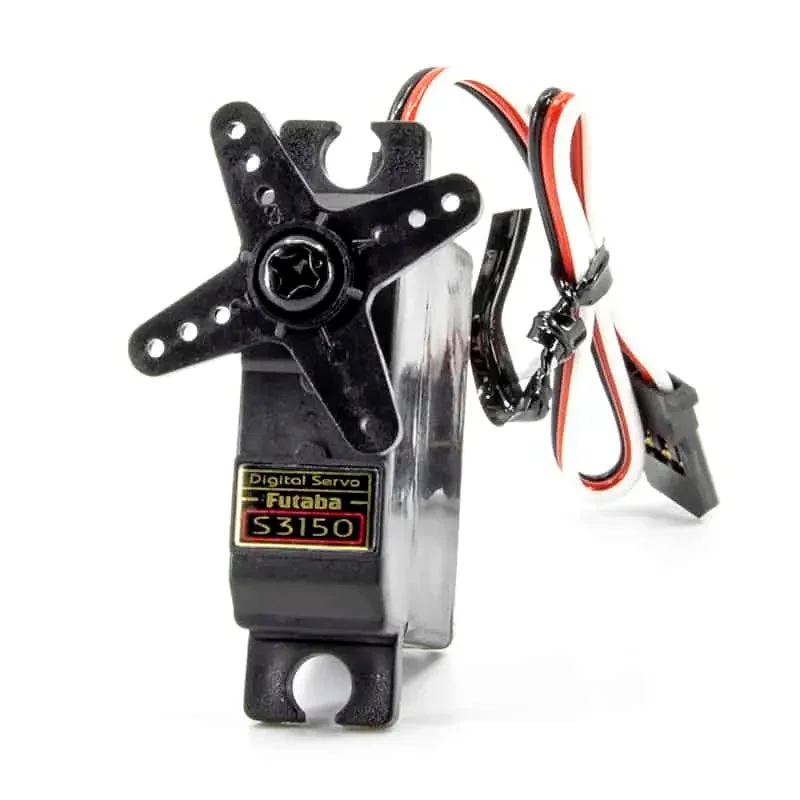

S3150 Slim Digital Metal Gear Micro Servo from Futaba – FUTM0303
If you are looking for a micro size digital servo that has a slim. low profile and works well for 1400 to 2000mm wingspan airplanes. medium and large EDF jets. and 500 sizes helicopters the Futaba S3150 is an outstanding choice that fails to disappoint.
Features:
- Coreless motor
- 2 ball bearings
- Metal gears
- Digitally enhanced microprocessors cut about half the response time from transmitter input to servo reaction
- Dust and water resistant-not water proof
- Compact design is especially suited for easy installation inside the wing of smaller gliders. jets and electric planes
- Black plastic case
- One year warranty
Includes:
- 1x S3150 slim digital metal gear micro servo
- 1x 1″ (25mm) star shaped horn
- 1x 1.5mm (39mm) star shaped horn
- 1x 1.8″ (45mm) straight arm
- 1x 1.4″ (35mm) diameter horn
- 2x each screws. eyelets. and grommets
- Instruction sheet
Product Specifications:
|
Servo Class |
Micro |
|
Servo Type |
Digital |
|
Gear Material |
Metal |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V |
|
Speed (4.8V) |
0.24 sec @ 60 deg |
|
Torque (4.8V) |
7 kg/cm (51.4 oz/in) |
|
Current Draw at Idle |
N/A |
|
Current Draw Operating (No Load) |
N/A |
|
Dimensions (L x W x H) |
30 x 11 x 29mm |
|
Weight |
23g (0.81oz) |
|
Lead Length |
304.8mm / 12in |
