Description

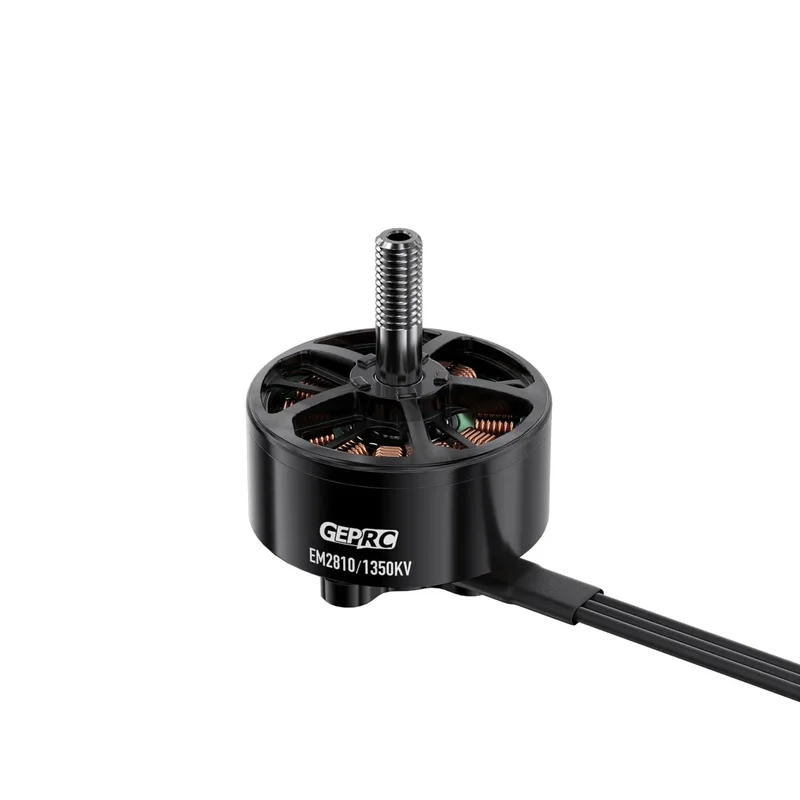

GEPRC EM2810 Motor Brushless Motor SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Motor

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: EM2810

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Feature

1. New EM series motors.mainly design for large-size FPV
2. High-strength M5 steel shaft
3.  High torque magnetic circuit design
4. 19mmx19mm base

Specifications

• Model: EM2810 1280KV Motor
• Max Watt: 1160W
• Peak current: 54A
• Interphase resistance: 46mΩ
• Propeller: 7-8inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: φ33mmx23.1mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 260mm/18AWG
• ESC: 50A-60A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single strand copper winding
• Weight: 69.5g(included wire)
• Applicable models: suitable for 7-8 inch long-distance traversing aircraft / 7 inch X8 models

Specifications

• Model: EM2810 1350KV Motor
• Max Watt: 1240W
• Peak current: 61A
• Interphase resistance: 43mΩ
• Propeller: 7-8inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: φ33mmx20.1mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 260mm/18AWG
• ESC: 50A-60A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single strand copper winding
• Weight: 69.5g(included wire)
• Applicable models: suitable for 7-8 inch long-distance traversing aircraft

Specifications GEPRC EM2810 KV 1280KV 1350KV Max Watt 1160W 1240W Peak current 54A 61A Interphase resistance 46mf 43mn Propeller 7-8inch Propeller Magnet N52H Bearing type NSK/NMB Configuration 12NI4P Dimension 033mmx23.Imm Shaft Diameter p5mm shaft protruding Length 16mm Mounting holes 19mmx19mm Lead 260mm/18AWG ESC
