Description

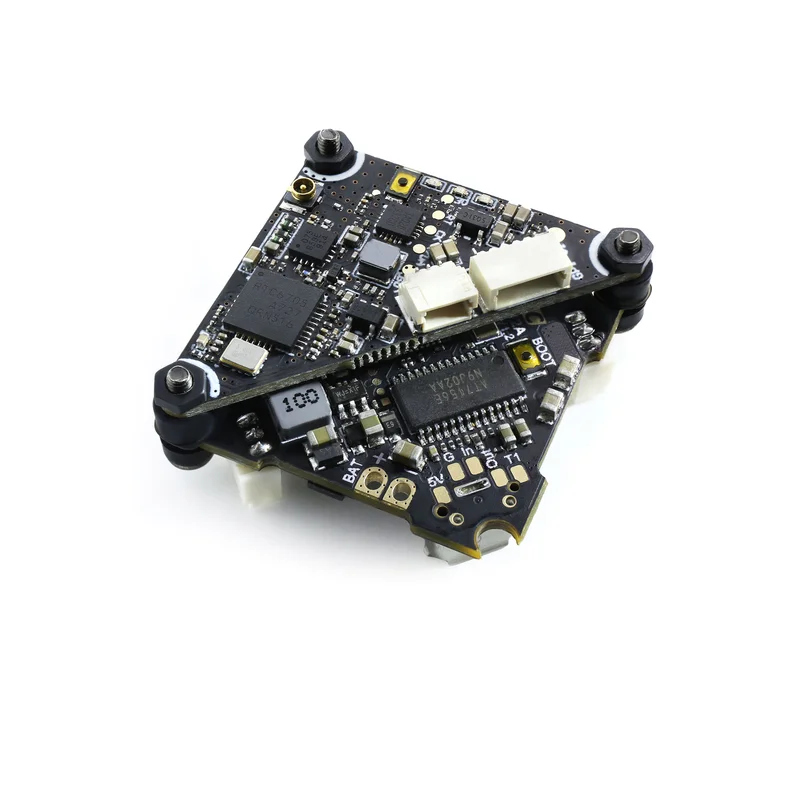

GEPRC STABLE 12A Whoop Stack
Check out all of our GEPRC Products!
This GEPRC Stable 12A Whoop stack is perfect for indoor whoops! It supports up to a 4s battery, which is perfect for an 1103-1105 motor. The F4 FC features an MPU6000 gyro, with adjustable OSD parameters, keeping your whoop light and convenient!
GEP-12A-F4 Flight controller:
Specifications:
- Model Name:GEP-12A-F4
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro: NO
- BEC Output: 5V@1A
- Integrated LC Filter
- Firmware target: GEPRCF411
- Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
- Installing Hole: 25.5×25.5mm, M2
- ESC MCU: BB21F16G
- Continuous current: 12A
- Input:2-4s lipo
- Supports Dshot600,Oneshot, Multishot
- Current meter: 210
- Target: G_H_30
VTX Specifications:
- Model Name: GEP-VTX200-Whoop
- Item name: 25~200mw 48CH VTX FPV Transmitter
- Output power: Pit/25/100/200mw switchable
- Channels: 48CH
- Input voltage: 4.5V – 5.3V
- Current consumption: 300mA(type)
- Antenna: RG178 antenna U.FL interface
- Frequency: 5.8GHz 5 bands 48 channels With Raceband
- Video Format: PAL/NTSC
- Control protocol：IRC Tramp
- Weight: 2g without antenna
Receiver Support:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receive
- TBS Crossfire Receiver
- AC900
- Most receivers that support SBUS
Includes：
– 1 x GEP-12A-F4
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
