HappyModel BNF Mobula6 1S Analog Whoop (SPI FrSky) – Choose Kv

Description

All products containing batteries must be shipped by a ground shipping method.

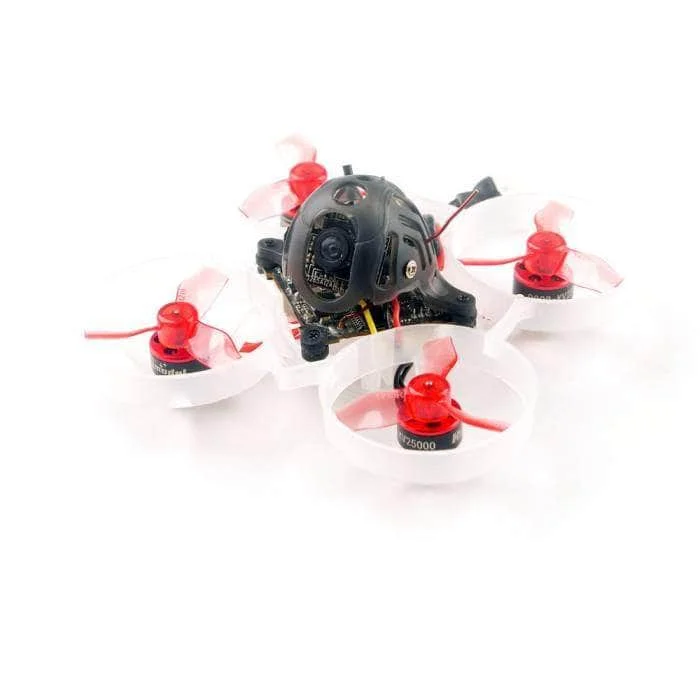

The Mobula6 Micro FPV Whoop features the Runcam Nano3, Onboard Frsky Receiver, 5A BLheli_S 4-in-1 ESC, and more! This mini and lightweight whoop (65mm) will take you hard-to-get places!

Pick a motor: Race (25000Kv) or Standard (19000Kv).

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
• Extreme light 1S 65mm Brushless whoop only 20g
• Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
• Smooth and powerful
• Compatible with 1S Lipo/LIHV
• Camera Angle adjustable

Specifications

• Brand Name: Happymodel
• Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
• Wheelbase: 65mm
• Size: 80mmx80mmx37mm
• Weight: 20g
• Receiver option:
• Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
• Motor speed option:
• SE0802 KV25000(Race Edition)
• SE0802 KV19000(Regular Edition)

Motors

• Model: SE0802 19000KV or KV25000
• Configuration:9N12P
• Stator Diameter:8mm
• Stator Length:2mm
• Shaft Diameter: Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.9g
• No.of Cells(Lipo):1S only

Propellers

• Gemfan 1219-3
• Center Thickness:5mm
• Prop Disk Diameter:31mm
• Center Hole Inner diameter:1.0mm
• Weight:0.28g

Flight controller

• (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: ICM42688P
• Board size: 28.5×28.5MM
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI Frsky/Flysky receiver
• Built-in 5V 1A BEC
• Built-in voltage detection

Onboard 4in1 ESC

• MCU upgraded to ICM42688P
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_7.HEX
• Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

• SPI BUS receiver Frsky D8 compatible
• Compatible Non-EU transmitter D8 modelChannels: 8ch
• Failsafe support
• No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8g VTX

• Output power: 25mw
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels
• With Race bandSmartaudio ready

Runcam Nano3

• Model: RunCam Nano 3
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens : 2.1mm(M8) FOV 160°
• Signal System: NTSC
• S/N Ratio: >50dBElectronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: [email protected]
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 110mA@5V [email protected]
• Housing Material: ABS
• Net Weight: 1.2g
• Dimensions: L14mmxW14mmxH9mm

Lipo Battery

• Capacity:300mAh
• Voltage:3.8v
• Continuous Discharge Rate: 30C
• Size: 57mmx12mmx7mm
• Weight: 8gConnector: PH2.0

Includes

• 1x Mobula6 1S 65mm whoop Drone Frame
• 1x SPI Receiver: Crazybee F4 Lite FC built-in Frsky SPI D8 RX
• 4x SE0802 KV19000 or KV25000 brushless motor
• 1x Gemfan 1219-3 Propellers(4cw+4ccw)
• 1x Runcam Nano3 1/3 CMOS 800TVL camera
• 1x 5.8G 25mw 40ch VTX (Flight controller built-in)
• 4x 1S 300mah 30C LiHV Battery
• 1x 1S Lipo/LIHV USB Charger
• 1x Propeller disassemble tool
