Description
IMPORTANT NOTICE FROM DIVIMATH:
THE HDZERO RACE V2 IS PLANNED TO BE RE-RELEASED BY END OF JUNE 2023-EARLY JULY WITH A COMPARABLE PRODUCT. THIS VERSION OF THE RACE VTX WILL NO LONGER BE SOLD.

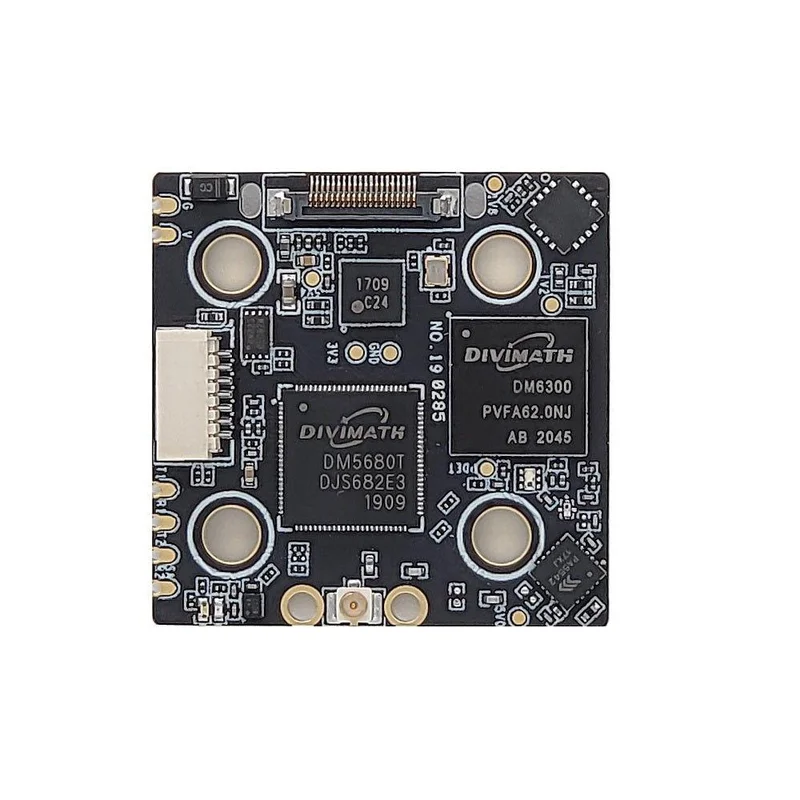

The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
SPECIFICATIONS
|
Model: |
HDZero Race V2 |
|
SKU： |
HDZ3140 |
|
Frequency: |
5.8G |
|
Resolution Default: |
1280*720@60fps |
|
RF power： |
25mw/200mw |
|
RF Connector: |
Secured U.FL |
|
Interface: |
4 lane MIPI CSI YUV422 |
|
Video Connector: |
20 Position 0.30mm Pitch |
|
Size: |
34mm x 34mm x 6mm |
|
Weight: |
5.9g |
|
Power: |
410mA@12V |
|
power input： |
7V-17V(2S-4S) |
|
Mounting： |
20mm x 20mm M4 with rubber grommets |
INCLUDES
- 1 x HDZero Race V2 VTX
- 5 x Power / Uart Cables
- 4 x Zip ties
- 6 x Rubber Grommet (M4 to M3)；
- 6 x Rubber Pad
- 1 x u.FL Antenna Retention Screws * 4/Nut * 4/Plate
