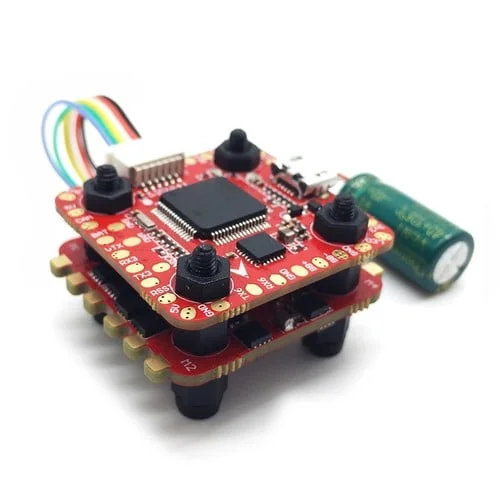

F420 Stack F4M3 (1PC)

Build a reliable and compact FPV drone with the HGLRC F420 Stack. This electronics package provides a complete, all-in-one solution, combining a feature-packed F4 flight controller with a matching 20A 4-in-1 ESC. Designed with a 20x20mm M3 mounting pattern, it’s the perfect core for a clean and simple build process, ideal for lightweight freestyle quads or efficient cruisers.

The F4M3 flight controller is built on a foundation of proven hardware, featuring the powerful STM32F405 processor and the legendary MPU6000 gyro. This combination is trusted by pilots for delivering a smooth, stable, and locked-in flight experience. With a robust 5V/3A BEC, it supplies plenty of clean power to peripherals, and the onboard 16MB black box allows for detailed data logging to help you tune your drone to perfection.

The DShot20A 4-in-1 ESC is the perfect partner for the FC, running on reliable BLHeli_S firmware and providing 20A of continuous current to your motors. This stack is designed for 2-4S LiPo batteries, making it an excellent choice for a wide variety of lightweight 3-inch to 5-inch drone builds where reliability and a compact form factor are top priorities.

Key Features:

• Complete Stack Solution: Includes both the flight controller and 4-in-1 ESC, ensuring perfect compatibility and simplifying the build with a clean, compact result.
• Proven F4 + MPU6000 Combo: Delivers a stable, responsive, and locked-in flight feel on Betaflight.
• 16MB Onboard Blackbox: Provides ample data logging capability for fine-tuning PIDs and filters to achieve peak performance.
• Robust 5V/3A BEC: Supplies plenty of clean power for your essential components like the receiver, VTX, and camera.
• Compact 20x20mm M3 Mounting: A modern, compact form factor with robust M3 mounting, suitable for a wide variety of frames.
• 2-4S Optimized: Perfectly matched for builds running on 2S, 3S, or 4S LiPo batteries.

Specifications:

F4M3 Flight Controller

• CPU: STM32F405RGT6
• MPU (Gyro): MPU6000-SPI
• Input Voltage: 2-4S LiPo
• Black Box: 16MB Flash
• BEC Output: 5V/3A
• Mounting: 20x20mm, M3

DShot20A 4-in-1 ESC

• Input Voltage: 2-4S LiPo
• Constant Current: 20A
• Peak Current: 25A (10s)
• Firmware: BLHeli_S
• Mounting: 20x20mm, M3

Package Contents:

• 1 x HGLRC F4M3 Flight Control Board
• 1 x HGLRC DShot20A BLHeli_S 4-in-1 ESC
