Description

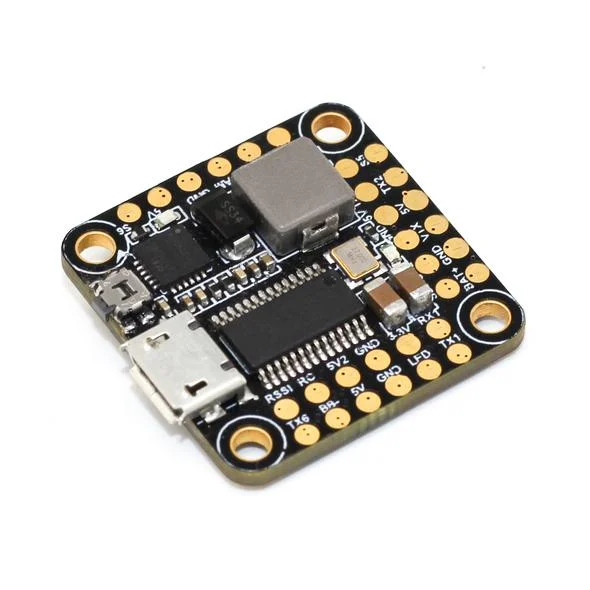

HGLRC Forward F4 MINI Flight Control

Build a reliable and high-performance FPV drone with the HGLRC Forward F4 Mini Flight Controller as its core. This compact 20x20mm FC is the perfect choice for pilots who value a smooth, stable, and predictable flight experience. HGLRC has a reputation for quality components, and the Forward F4 Mini delivers the performance needed to make your quad fly its absolute best.

The board is built on a foundation of proven, trusted hardware. It pairs the workhorse STM32F405 processor with the legendary MPU6000 gyro—a combination known for its excellent flight characteristics and low-noise performance. This no-nonsense approach provides a locked-in feel without unnecessary complexity. With a robust 5V/3A BEC, you’ll have plenty of clean power for all your essential peripherals, including your receiver, camera, and video transmitter.

Designed for a wide range of builds, the Forward F4 Mini supports a 2-6S LiPo input, making it just as suitable for a lightweight 4S freestyle build as it is for a powerful 6S long-range quad. The included 8-pin cable allows for a clean, simple connection to a compatible 4-in-1 ESC, reducing soldering time and build clutter.

Key Features:

• Proven F405 + MPU6000 Combo: A reliable processor and gyro combination that delivers a stable, responsive, and locked-in flight feel on Betaflight.
• Robust 5V/3A BEC: Provides plenty of clean, reliable power for your receiver, VTX, camera, and other components.
• Compact 20x20mm Form Factor: The ideal size for lightweight and space-constrained builds, allowing for a clean and compact electronics stack.
• Wide 2-6S Input Voltage: Offers maximum flexibility to use this single FC for a huge range of FPV drone builds.
• Clean ESC Connection: The included 8-pin cable allows for a simple, plug-and-play connection to a compatible 4-in-1 ESC.
• Betaflight OSD: Easily view and configure your PIDs, rates, and other settings directly on your FPV feed.

Specifications:

• Model: Forward F4 MINI Flight Control
• CPU: STM32F405R6T6
• MPU (Gyro): MPU6000-SPI
• Input Voltage: 2-6S LiPo
• Firmware Target: Betaflight OMNIBUSF4V6
• BEC Output: 5V@3A
• Mounting Hole: 20x20mm, M2
• Board Size: 25.0×25.0mm
• Weight: 4.7g

Package Includes:

• 1x HGLRC Forward F4 MINI Flight Control
• 1x SH1.0 8-Pin 60mm Cable
