Description

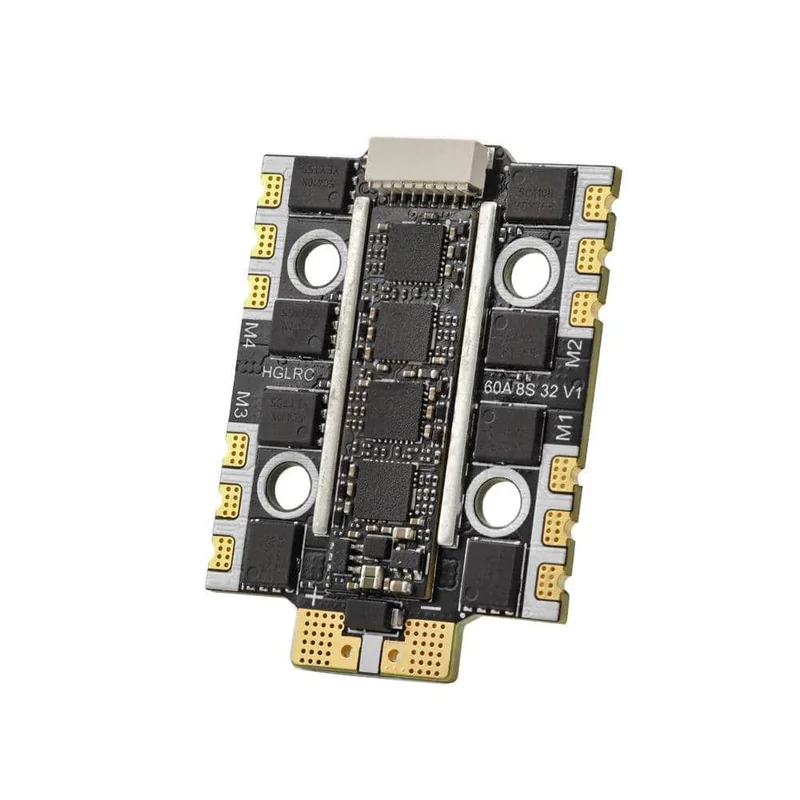

The HGLRC Mini V1 60A 8S BL32 ESC is a compact 4-in-1 speed controller built for reliable 3–8S performance. With 60A per channel output and a lightweight 14g design, it delivers smooth power for freestyle and racing builds while fitting standard 20mm mounting patterns.
Check out the rest of our 20×20 ESCs and all our HGLRC products!
Features
- 3-8S high-voltage wide input range compatible with most drone types
- High-current copper bars provide efficient heat dissipation
- Compact and lightweight 20x20mm size
- Compatible with BL32 and AM32 firmware (shipped with BL32)
- 6+4 Layer PCB provides efficient anti-interference performance
Specifications
- Input Voltage: 3-8S
- Continuous Current: 60A
- Peak Current: 65A (for 10 seconds)
- Firmware: BL32
- MCU: QF32MTF4AK8U7
- Telemetry: Supported
- Mounting Hole Pattern: 20x20mm, M3
- Supported Protocols: DShot300 / DShot600 / Oneshot / PWM
- Dimensions: 46.8mm x 34mm x 6.5mm (LxWxH)
- Weight: 14g
Links
- Manual
Includes
- 1x HGLRC Mini V1 60A 8S BL32 4-in-1 ESC
