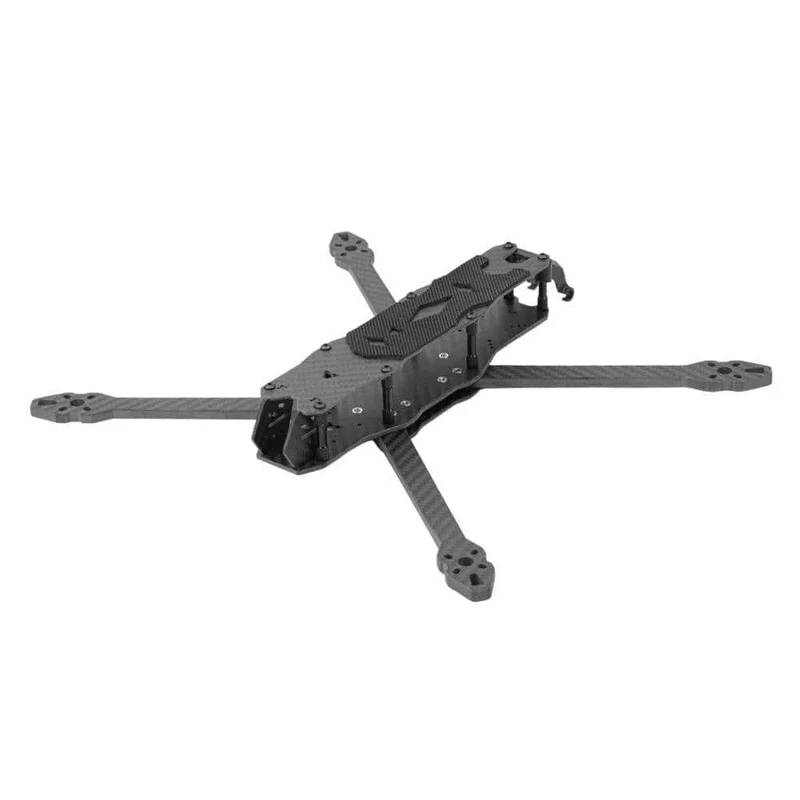

HGLRC MY7 7″ LR Frame Kit

Description

The HGLRC MY7 Frame Kit is a lightweight, durable 7‑inch frame designed for long‑range and freestyle builds. Its rigid construction and optimized layout make installation easy while supporting a wide range of components.

Check out all our 7″ frames, as well as our whole HGLRC product line!

Features

• Lightweight 7-inch frame optimized for long‑range and freestyle
• Durable carbon fiber construction for strength and rigidity
• Spacious layout supports various motors, ESCs, and flight controllers
• Easy assembly with pre-drilled mounting holes
• Sleek design with reinforced arms for crash resistance

Specifications

• Frame: HGLRC MY7 Frame
• Type: 7-inch Frame
• Top Plate Thickness: 2mm
• Middle Plate Thickness: 3mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 6mm
• Camera Side Plate Thickness: 2mm
• Wheelbase: 335mm
• FC Mounting Pattern: 30.5mm x 30.5mm (M3)
• VTX Mounting Pattern:
  • 30.5mm x 30.5mm (M3)
  • 25.5mm x 25.5mm (M2)
  • 20mm x 20mm (M2)
• Motor Mounting Pattern :  16mm x 16mm (M3)
• Camera Mounting Size:  19-20mm
• Overall Dimensions (LxW):  265mm x 300mm
• Frame-On ly Weight:  217g ±5g (Includes antenna mount, screws, anti-slip pad)

Includes

• 1x HGLRC MY7 7″ LR Frame Kit
• 12x M3x8mm Button Head Screws 6x
• M3x12mm Button Head Screws
• 4x M3x16mm Button Head Screws
• 4x M3x25mm Button Head Screws
• 8x M3x28mm Aluminum Standoffs
• 4x M3 Nylon Lock Nuts
• 1x Antenna Mount
• 1x Antenna Cap/Plug
• 4x Motor Wire Tubes/Guides
• 2x 300mm Cable Ties
• 1x Anti-Slip Battery Pad
• 1x HGLRC Large Sticker Sheet
