Description
Specifications

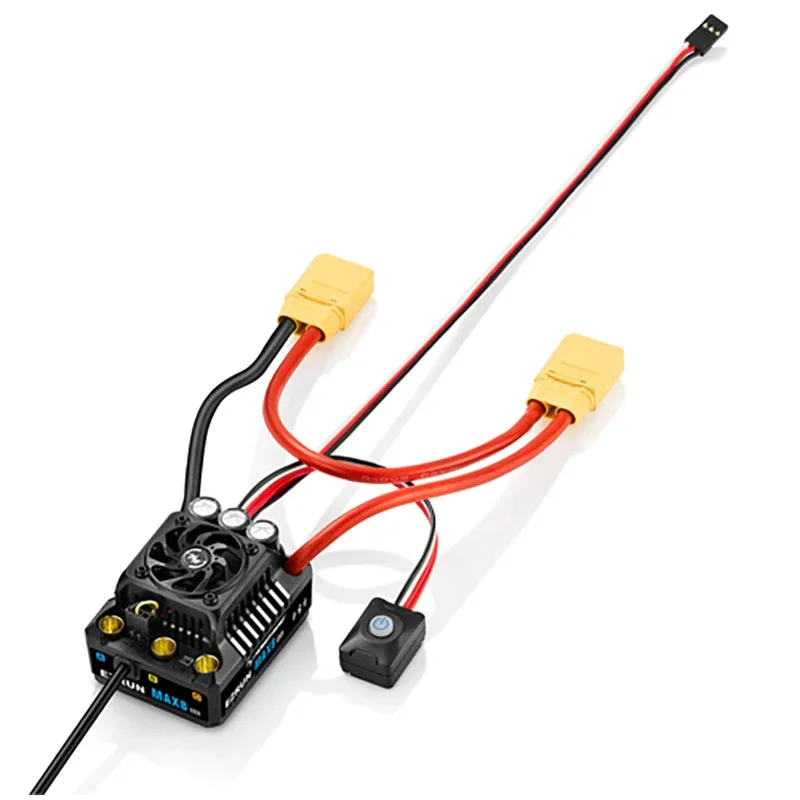

EzRun Max8 G2S ESC Specifications
-
Type: Inductive brushless ESC
-
Continuous / Peak Current: 160A / 1050A
-
Battery Support: 3-6S LiPo
-
BEC Output: 6V / 7.4V / 8.4V adjustable. continuous current 6A (Switch-mode)
-
Cooling Fan: 30 × 30 × 10 mm
-
Programming Method: Supports LED Programming Box. LCD Programming Box. and OTA Programmer
-
Programming Interface: Shared interface with cooling fan
-
Power Plug: XT90
-
Power Cables: Red / Black – 10AWG
-
Size: 60 × 48 × 40.5 mm
-
Weight: 192g (including wires)
EZRUN-4278SD-G2 Motor Specifications
-
Model: EZRUN-4278SD-G2
-
Type: Inductive brushless motor
-
Number of Poles: 4 poles
-
KV Rating: 2250KV
-
Battery Support: 3-6S LiPo
-
No-load Current: 5.0A
-
Outer Diameter: 42mm
-
Length: 78mm
-
Shaft Diameter: 5mm
-
Weight: 455g
EZRUN-4268SD-G2 Motor Specifications
-
Model: EZRUN-4268SD-G2
-
Type: Inductive brushless motor
-
Number of Poles: 4 poles
-
KV Rating: 2500KV
-
Battery Support: 3-4S LiPo
-
No-load Current: 4.8A
-
Outer Diameter: 42mm
-
Length: 68mm
-
Shaft Diameter: 5mm
-
Weight: 355g
EzRun Max8 G2S Specifications
| Category | Value |
|---|---|
| Product Name | EzRun Max8 G2S |
| Product Number | 30103205 |
| Type – Scale | 1/8th |
| Type – Brushed/Brushless | BL |
| Type – Sensored/Sensorless | SD |
| Type – Waterproof | Yes |
| Specifications – Cont./Peak Current | 160A/1050A |
| Specifications – Input Voltage | 3-6S Lipo |
| Specifications – BEC Output | 6V / 7.4V / 8.4V adjustable. continuous current 6A (Switch-mode) |
| Wires – Input Wires | Black-10AWG-150mm*1 Red-10AWG-150mmX1 |
| Wires – Output Wires | NO |
| Wires – Input Connectors | XT90 |
| Wires – Output Connectors | 6.5 Bullet Connectors (female) |
| ESC Programming – SET Button on ESC | Not Supported |
| ESC Programming – LED Program Box | Not Supported |
| ESC Programming – LCD G2 Program Box | Not Supported |
| ESC Programming – LCD PRO | Not Supported |
| ESC Programming – OTA Programmer | Not Supported |
| ESC Programming – Program Port | Built-in Bluetooth |
| Fan – Size | 30×30×10mm |
| Fan – Voltage Range | 6V / 7.4V / 8.4V |
| Fan – Powered by | BEC |
| Data Recording – Extreme value | Supported |
| Data Recording – Real-time Data | Supported |
| Data Recording – Historical data (Graph) | Supported |
| Firmware – Firmware Upgrade | Supported |
| Size & Weight – Size | 60*48*40.5mm/40.5mm |
| Size & Weight – Weight | 192g(w/Wires) |
| Applications – Motors | Sensored brushless motors / Sensorless brushless motors |
| Applications – Vehicles | 1/8th On-road. Short course truck. Monster truck |
| Applications – KV Rating/T Count (4S) | With 4S Lipo: KV ≤ 3000 |
| Applications – KV Rating/T Count (6S) | With 6S Lipo: KV ≤ 2400 4278 size motor |
Details
EzRun Max 8 ESC includes optimized hardware and intelligent freewheeling. improving stability and reliability for enhanced performance.
EzRun Max 8 ESC includes built-in Bluetooth for direct mobile app connection. It supports parameter settings. data reading. and firmware upgrades. Connections are effortless. eliminating the need for extra devices. Monitored data comprises throttle. voltage. current. temperature. speed. etc. A smartphone interface shows real-time stats such as RPM and battery levels. This advanced ESC boosts user control and monitoring for optimal performance. Simplified operations enhance overall functionality without additional tools or complex setups.
Built-in data logging function for easy power status monitoring. Stores up to 10 minutes of recent run data. HW Link V2 App allows real-time viewing and bench testing outputs. Effective Bluetooth distance: about 5m.
EzRun Max 8 ESC includes intelligent fan control. activating when temperatures reach preset values to minimize noise and save power. ensuring optimal performance.
Efficient cooling system uses frameless fan with patented technology for optimal ESC operating temperature.
EzRun Max 8 ESC: IP67 waterproof. dust-proof. all-weather operation capabilities.
EzRun Max 8 ESC offers adjustable turbo timing. boosting motor RPM and speed by 25%.
EzRun Max 8 ESC includes capacitor overheating protection. preventing power cap damage from overloads or extreme conditions.
Super Built-in BEC: 15A max output. switchable 6V/7.4V/8.4V voltage for high-power. high-voltage servos.
Waterproof Sensor Harness. Hobbywing provides element-proof solution for sensor-based systems. Supports normal adaptor sensed motors; additional adapter wires needed for others. EzRun Max 8 ESC featured.
