Description
Overview

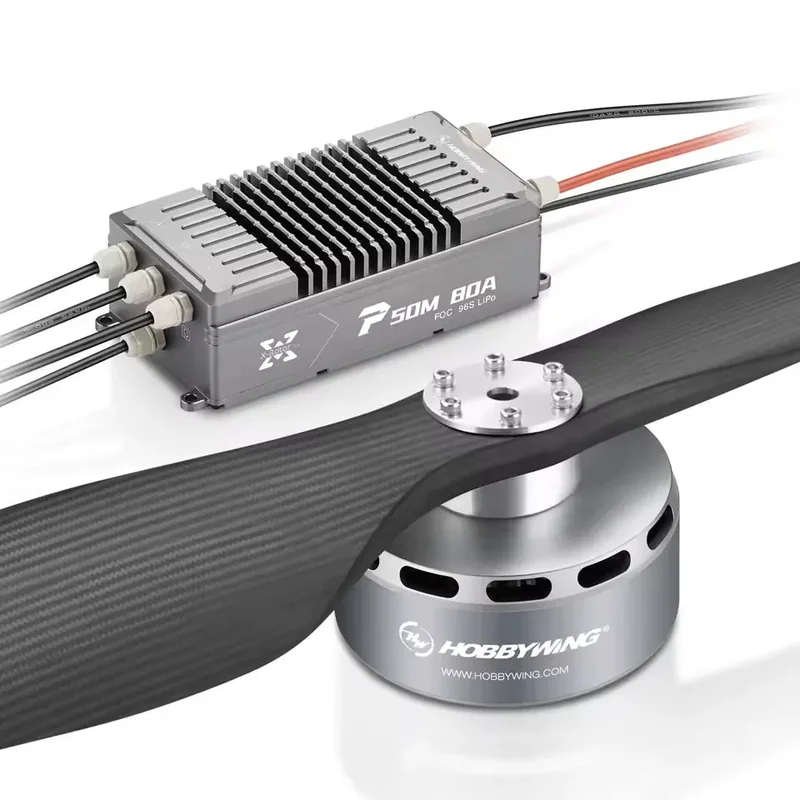

The Hobbywing P50M Power System is purpose-built for large industrial drones. delivering up to 104kg of thrust. operating at 400V nominal voltage. and supporting 96~107S LiPo batteries. It includes a high-performance 15635 motor. a reliable 80A FOC ESC. and 64×20″ or 54×23″ carbon fiber propellers. with compatibility for 60mm carbon tube arms. Designed with dual-redundant RPM sensors. IP-rated waterproofing. and advanced FOC control. the P50M ensures both power and safety for demanding missions.
Key Features
-
104kg max thrust. 50kg recommended per axis
-
400V rated voltage. 280–450VDC working range
-
Dual communication (UAVCAN & RS485). supports PWM
-
Black box logs up to 48 hours of flight data
-
Real-time telemetry: RPM. temp. voltage. current. throttle
-
Full ecosystem compatibility: ArduPilot. CUAV. TopXGun. etc.
-
High-reliability design: Automotive-grade materials. dual RPM feedback. IP-rated protection
-
OTA firmware upgrades and quick parameter tuning with dedicated software
-
Supports 60mm arm tubes. with weight of 6.1–6.3kg including propeller and cables
Technical Specifications
Power System – P50M Specifications
| Category | Specification |
|---|---|
| Product Model | P50M |
| Max Thrust | 104kg |
| Recommended Single-Axis Thrust | 50kg |
| Thrust Efficiency | 7.1g/W |
| Voltage Range* | 280~450VDC |
| Rated Voltage | 400V |
| Compatible Battery | 96~107S LiPo |
| Tube Diameter | φ60mm |
| System Weight (incl. wires & props) | 6.1~6.3kg |
| Wire Specs | Power: 10AWG*400mm; Signal: 800mm |
| Operating Temperature | -35~55℃ |
| Ingress Protection | IP35 |
| *Working voltage for flight: 280 |
ESC – 80A-FOC Specifications
| Category | Specification |
|---|---|
| Model | 80A-FOC |
| Communication | UAVCAN / RS485 |
| Dimensions (with connectors) | 225.6 × 98 × 60 mm |
| Weight (incl. wires) | 1200g |
| Max Current | 80A (3s burst) |
| Continuous Current | 40A |
| Ingress Protection | IP67 |
| Dual Throttle Modes | CAN+RS485 / CAN+PWM / RS485+PWM |
| PWM Range (non-calibrated) | 1100~1940μs |
| Black Box | 2~48h real-time data logging |
Motor – 15635 Specifications
| Category | Specification |
|---|---|
| Model | 15635 |
| KV Rating | 9KV / 11KV |
| Dimensions | Φ167.1 × H100.5 mm |
| Slot/Pole Count | 36N 42P |
| Ingress Protection | IPX5 |
| Weight (incl. wires) | 4250±30g |
Propeller Specifications
| Category | Specification |
|---|---|
| Models | 64×20″ / 54×23″ |
| Weight per Blade | 860g / 707g |
| Material | Carbon Fiber |
| Mounting Size | D60-6*M6. Center Hole D20 |
Application Scenarios
The Hobbywing P50M Power System is ideal for:
-
Heavy lift industrial UAVs for cargo and logistics
-
Agricultural drones with high-capacity tanks
-
Inspection drones for wind farms. pipelines. and transmission lines
-
Aerial platforms for mapping. rescue. and surveillance
-
Drones requiring precise and redundant flight safety mechanisms
