Description

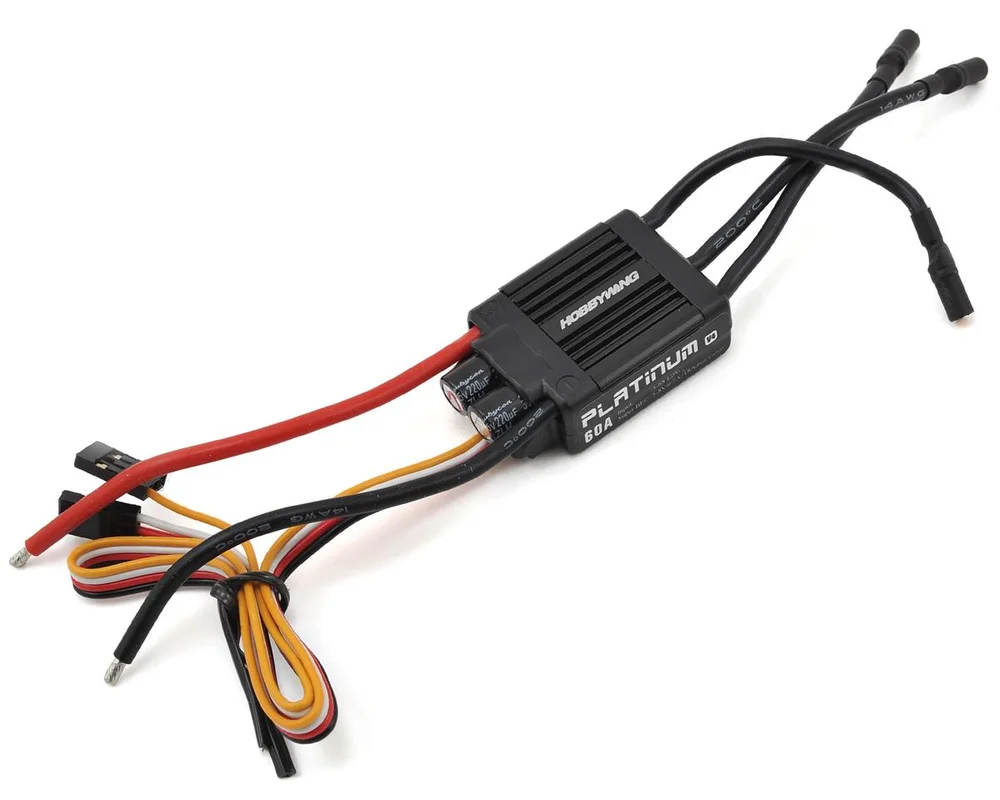

The Hobbywing Platinum V4 60A ESC is specially designed for use with 450-480 sized helicopters. It boasts a unique aluminum alloy case that has been carefully crafted and finished with an oxidation process, coloring, and edge-highlighting. The innovative “duo” stacking structure allows for excellent heat dissipation, quickly conducting heat to the aluminum case.
The high-performance 32-bit processor combined with advanced algorithms provides excellent motor speed-governing for different conditions, with adjustable sensitivity for the most suitable settings. The Platinum 60A features a super soft start-up that avoids tail-drift issues, adjustable within 8 to 25 seconds, and a built-in switch mode BEC with a continuously adjustable output voltage ranging from 5V to 8V.
With great current endurance, this ESC guarantees safety, even in extremely high-power demanding situations. It also has a built-in sparkproof circuit that eliminates sparks during the “powering-on” moment, which prolongs the connectors lifespan.
Other specifications include: internal governor, continuous current of 60A, cell count of 3-6S, peak current of 80A, weight of 49g, dimensions of 48x30x15.5mm, DEO Technology, and spark-proof capability. The Platinum V4 60A ESC can be programmed using the LCD program box, WiFi module, or a separate program port.
