HobbyWing QuicRun Brushed 1060 60A SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: HobbyWing QuicRun Brushed 1060 60A

Tool Supplies: Battery

Technical parameters: KV1100

Size: As show

Remote Control Peripherals/Devices: Remote Controller

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: HobbyWing QuicRun Brushed 1060 60A

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

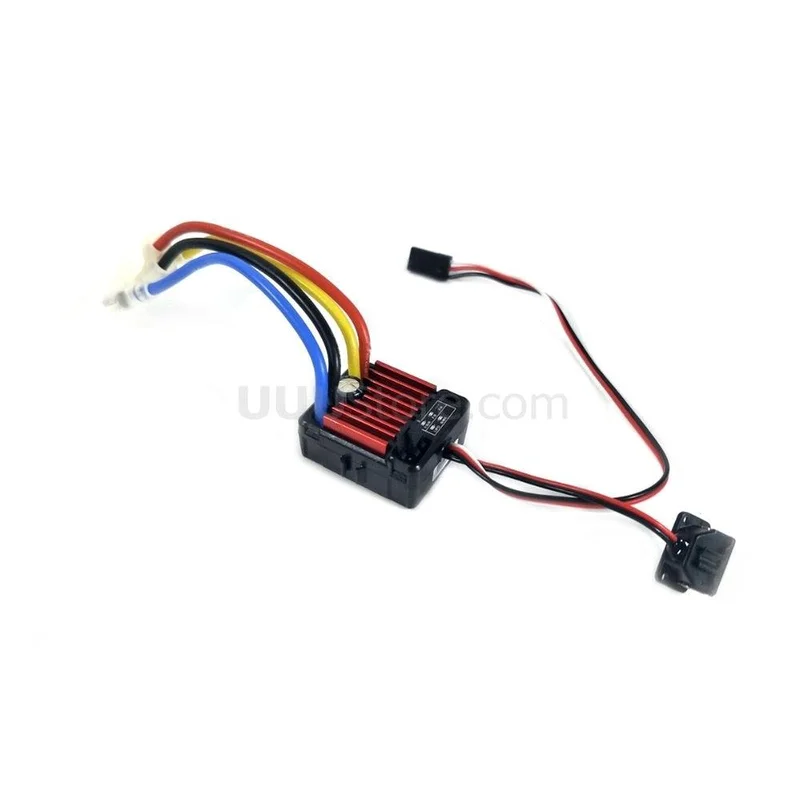

HobbyWing QuicRun Brushed 1060 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car

Features

100% brand new and high quality

Water-proof and dust-proof. suitable for all-weather condition races.

Compact size. suitable for various car chassis.

Small size with built-in capacitor module.

Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward. Br=Brake. Rev=Reverse).

Great current endurance capability.

Great built-in BEC output capacity.

Automatic throttle range calibration. easy to use.

Easy to set the ESC parameters with jumpers.

Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.

Excellent operating feelings and plentiful adjustment options. suitable for most kinds of competitions.

Specifications:

Model: 1060-BRUSHED

Fwd. Cont. / Peak Current: 60A /360A

Rev. Cont. / Peak Current: 30A /180A

Voltage Range: 2-3S Lipo or 5-9 NiMH

Cars Applicable: 1/10: Touring Car. Buggy. Short Course Truck. Monster. Truggy. Rock Crawler and Tank

Motor Limit:

2S Lipo or 6 NiMH

540 or 550 Size Motor: ≥12T Or RPM<30000  7.2V 3S Lipo or 9 NiMH 540 or 550 Size Motor: ≥18T Or RPM< 20000  7.2V 4S Lipo or 12 NiMH Not Available Resistance: Fwd 0.001Ω. Rev 0.002Ω BEC Output: 2A/5V (Linear Mode) PWM Frequency: 1KHz Dimension / Weight: 36.5*32*18 / 39g Cooling Fan: Without cooling fan Running Modes: Forward/Reverse/Brake. Forward/Brake. Forward/Reverse Net Weight: 122g Package includes:


1 x 1060-BRUSHED ESC

Control run smoothly with one remote radio and receiver.
