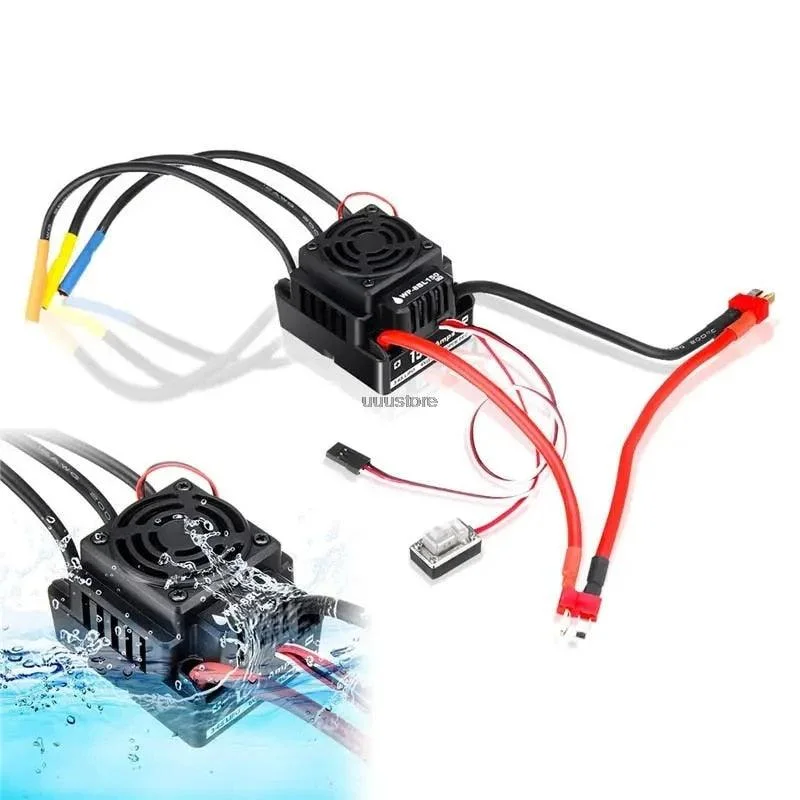

HobbyWing QuicRun WP-8BL150 ESC – Black 1/8 Brushless WaterProof 150A Electronic Speed Controller Use 3-6S Lipo Double T / XT60 Connector For RC Drone Airplane Cars

Description

HobbyWing QuicRun WP-8BL150 ESC SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y.18+

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Origin: Mainland China

Model Number: QuicRun WP-8BL150

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

HobbyWing QuicRun WP-8BL150 Black 1/8 Brushless WaterProof 150A ESC Use 3-6S Lipo For RC Car Parts Double T / XT60 Connector

:
Brand: HobbyWing
Model: QUICRUN-WP-8BL150
Color: Black
Cont./Peak Current/ Resistance: 150A/950A/0.00035Ω
Motor Type Supported: Sensorless Brushless Motor
Battery: 9-18 Cells NiMH 3-6S Lipo
BEC Output: 6V/3A (Switch Mode)
External Program Port: Available
Working Voltage of Fan: From BEC (6V)
Car Applicable: 1:8 Buggy/Monster
Low Voltage Cut-off Protection: Yes
Over-heat Protection:Yes
Throttle Signal Loss Protection:Yes
Motor Lock-up Protection:Yes
Size(L*W*H):59.5x48x42mm

Motor Limit:
For 4S Lipo or 12 cells NiMH:
4274-size or smaller motor with the KV<3000
For 6S Lipo or 18 cells NiMH:
4274-size or smaller motor with the KV<2400

Package included:
1 x WP-8BL150 1/8 Brushless WaterProof 150A ESC
