Hobbywing X13 Power System Specification

Hobbywing X13: Suitable for 4-Axis 50L Agriculture Drone;

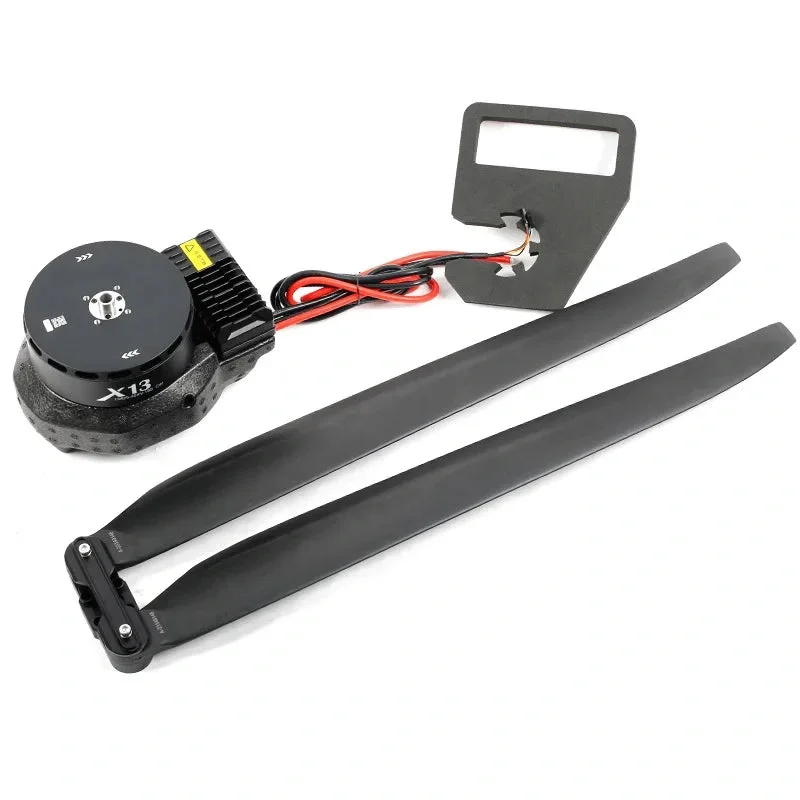

Hobbywing X13 Power System Details

UAV Integrated power system

The whole power system has been assembled before leaves the factory. Unpack and take out the power kit to install on the rack of plant-protection plane as per the rotation direction of motor.

ESC

• Continuous Current: 80A (Non-hermetic Ambient Temperature ≤60°C)
• Maximum Current.: 200A (Non-hermetic Ambient Temperature ≤60°C)
• Throttle Pulse Width.: 1050-1950μs
• Recommended LiPo Battery:
• 45KV – 18S
• 60KV – 12-14S LiPo (Max 61V)

Hobbywing X13 Motor(45KV | 60KV)

• Stator Size: 138*25
• Motor Size: 148*63.5mm
• KV: 60kv or 45kv

5620 Propeller

• Diameter Pitch: 56*20 inch
• Single propeller weight: 292g
• Weight (INC. adapter): 805g

This 5620 Propeller is compatible with HOBBYWING XRotor X13 system. perfect for agricultural drone builds.

The XRotor X13 brushless power system is a robust plant protection system designed for 25-27kg/rotor single-rotor loads. with more than 53kg of maximum thrust. It is suitable for 50mm carbon fiber tube arms and is IPX6 waterproof. capable of withstanding rain pesticieds. salt spray. high temperatures. sand/dust. impacts. and mud/sand. Featuring FOC vector control and PMSM-based algorithm optimization. the system combines digital and analog throttle for increased flight stability. plus power-on auto-detection and safety functions such as voltage abnormality protection. over-current protection. stall protection. and others; all data is transmitted via CAN. and faults are logged for better analysis.

2 models available – 45KV |  60KV

• Recommended Takeoff Weight: 25-27kg/axis
• Total Weight: 2800g
• Maximum Thrust: 53kg+(54V. Sea Level)
• Operating Temperature: -20°C-50°C
• Powertrain Arm Tube Outer Diameter: 50mm
• Protection Grade: IPX6
• Total Weight: 4060g( INC. prop)
• upport throttle Frequency: 50-500Hz

User Manual & Installation guide

• User’s manual: XRotor X13-45kv-18S.pdf >
• User’s manual: XRotor X13-60kv-14S.pdf >

Highly efficiency system with extremely fast response speeds High torque. High efficiency. Fast response. 133 Series Motor 200A Speed Control 56″. Propeller

This high-efficiency power system features fast response times. high torque. and efficient performance. It includes an X13 series motor. a 2000 speed control. and a 5.6 propeller.

4-axis-50L X13 18S Performance Platform • Maximum thrust 56kg/rotor • Rated thrust 27kg/rotor • Efficiency up to 8.0g/W X13-18S 7.2 minutes flight time 18S-30000mAh battery 4-Axis 108kg take off weight

Quick disassembly design ESC and motor disassembly only takes 1 minute; Appearance 2.0 design Industrial. innovative layout providing a very clean aesthetic. X13 High reliability waterproof connector Easy to install and maintain

Smart Protection V2.0 In the event of an external or internal failure. Smart Protection automatically restarts. This will reduce the likely hood of an accident and allow safer flying. Built-in fault storage function. saving fault information for easy analysis of causes. Hundreds of tests. stable performance In response to the rigorous and complex agricultural application operating environment. a variety of test projects and working conditions are set up to ensure flight safety.

smart protection v2.0 automatically restarts in the event of an external or internal failure . this will reduce the likely hood of an accident and allow safer flying . hundreds of tests. stable performance in response to the rigorous and complex agricultural

1ooh+ -20658c ipx6 hours flight test high and low temperature test jwato s_proof tost .

53KG+

HOBBYWING XRotor X13 power system delivers to a single-rotor load of 25-27kg/rotor. The maximum thrust of a single-rotor is 53kg+. FOC vector control. based on PMSM system algorithm optimization.
(Props sold separately.) Pair best with 5620 Propellers

Hobbywing XRotor X13 system

• The XRotor X13 brushless power system is a robust plant protection system designed for 25-27kg/rotor single-rotor loads. with more than 53kg of maximum thrust. It is suitable for 50mm carbon fiber tube arms and is IPX6 waterproof. capable of withstanding rain pesticieds. salt spray. high temperatures. sand/dust. impacts. and mud/sand. Featuring FOC vector control and PMSM-based algorithm optimization. the system combines digital and analog throttle for increased flight stability. plus power-on auto-detection and safety functions such as voltage abnormality protection. over-current protection. stall protection. and others; all data is transmitted via CAN. and faults are logged for better analysis.

  2 models available -45KV |  60KV

  • Recommended Takeoff Weight: 25-27kg/axis
  • Total Weight: 2800g
  • Maximum Thrust: 53kg+(54V. Sea Level)
  • Operating Temperature: -20°C-50°C
  • Powertrain Arm Tube Outer Diameter: 50mm
  • Protection Grade: IPX6
  • Total Weight: 4060g( INC. prop)
  • upport throttle Frequency: 50-500Hz

Hobbywing X13 Motor Power System Testing

Hobbywing X13 Power System  Performance

XRotor X13-14S Load performance parameters

XRotor X13-14S Techenical Parameters

The above data are measured under the environment of room Temperature(℃) (25°C) and sea level altitude. changing the throttle input to adjust the thrust force.

XRotor X13-18S Load performance parameters

XRotor X13-18S Techenical Parameters

The above data are measured under the environment of room Temperature(℃) (25°C) and sea level altitude. changing the throttle input to adjust the thrust force.
