Description

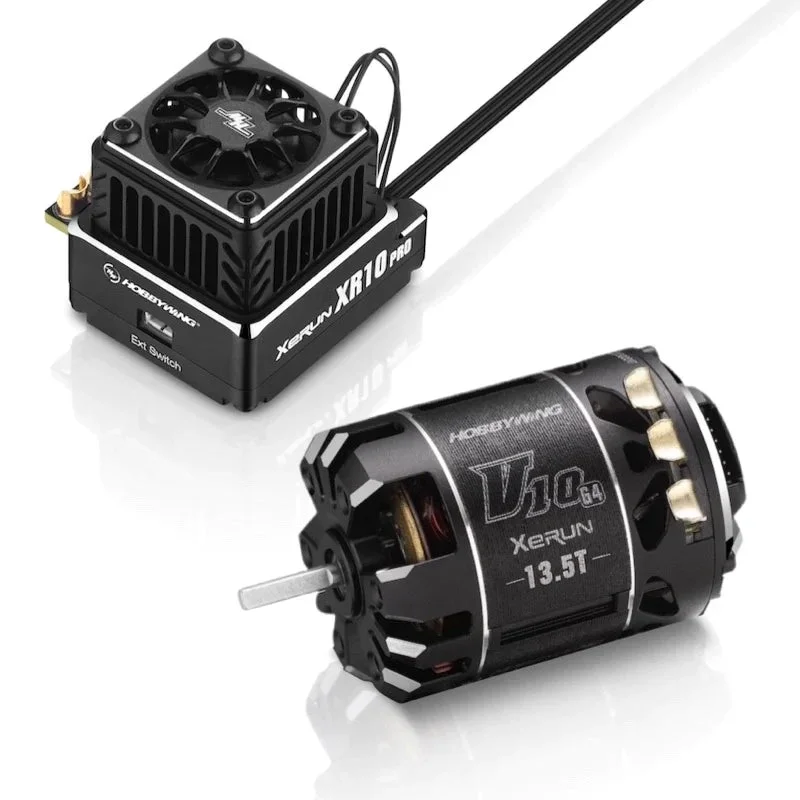

Hobbywing XERUN XR10 Pro ESC G2S Combo
What’s in the box?
- 1x XR10 Pro G2S ESC
- Depending on the Motor Selection
1x XERUN V10 Competition Brushless Motor - 1x Bonus item(s)
(2) Input wires & (3) Output wires -PRE-SOLDERED-
(2) x cooling fan (comes with one backup fan)
Dual capacitors
Decals
Parts: heat tubes. double tape. nylon cable zap traps
Modified Editions
| Combo Name | P/N | Motor included in Combo |
| XR10Pro-B | 38020325 | V10 4.5T G3 |
| XR10Pro-C | 38020326 | V10 5T G3 |
| XR10Pro-D | 38020327 | V10 5.5TG3 |
| XR10Pro-E | 38020328 | V10 6TG3 |
| XR10Pro-F | 38020329 | V10 6.5TG3 |
| XR10Pro-G | 38020330 | V107TG3 |
| XR10Pro-H | 38020331 | V10 7.5T G3 |
| XR10Pro-J | 38020333 | V10 8.5T G3 |
Spec Class Editions
| Combo Name | P/N | Motor included in Spec Combo |
| XR10Pro-K | 38020334 | V10 13.5T G4 |
| XR10Pro-L | 38020335 | V10 17.5T G4 |
| XR10Pro-M | 38020336 | XV10 21.5T G4 |
XeRun XR10 Pro G2S ESC
| Edition package | Stealth |
| P/N | 30112613 |
| Wires gauge: (2) power wires & (3) Phase wires |
13 AWG (Lightweight Ultra-flex) |
| FFD Technology* | Yes |
| Weight W/O wires | 52.64g |
*FFD=Frameless Fan Design (Patented)
User’s Manual
Learn more >
Modified motors (4.5T-10.5T / 25.5T)
- 2 POLE Super High-Efficiency brushless motor
- Diameter/Length (mm): Ø=35.9mm L=51.2mm
- Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm (25.5T L=13mm)
Spec motors (13.5T-21.5T)
- 2 POLE Super High-Efficiency brushless motor
- Diameter/Length (mm): Ø=35.8mm (1.41in) L=51.4mm (2.024in)
- Shaft Diameter/ Length (mm): Ø=3.175mm (0.125in) L=13.9mm (0.547in)
| p/n | V10 | T | kv | LiPo | (Ω) | No-load Current (A) |
Max. Output Power (W) |
Current @Max. Output Power (A) |
Stock Rotor |
Weight (g) |
| 30401102 | G3 | 4.5 | 7340 | 2S | 0.0029 | 6.7 | 457 | 122 | Φ5-12.3 | 163 |
| 30401116 | G3 | 5 | 6500 | 2S | 0.0035 | 5.5 | 443 | 118 | Φ5-12.3 | 159 |
| 30401107 | G3 | 5.5 | 5900 | 2S | 0.0041 | 5 | 426 | 115 | Φ5-12.5 | 163 |
| 30401117 | G3 | 6 | 5500 | 2S | 0.0048 | 4.5 | 415 | 113 | Φ5-12.5 | 162 |
| 30401109 | G3 | 6.5 | 5120 | 2S | 0.0056 | 3.9 | 402 | 113 | Φ5-12.5 | 164 |
| 30401118 | G3 | 7 | 4800 | 2S | 0.0065 | 3.5 | 364 | 106 | Φ5-12.5 | 161 |
| 30401110 | G3 | 7.5 | 4420 | 2S | 0.0074 | 3.3 | 346 | 100 | Φ5-12.5 | 161 |
| 30401119 | G3 | 8 | 4200 | 2S | 0.0089 | 3.0 | 320 | 88 | Φ5-12.5 | 160 |
| 30401111 | G3 | 8.5 | 3970 | 2S | 0.0097 | 2.8 | 298 | 84 | Φ5-12.5 | 163 |
| 30401140 | G4 | 13.5 | 3950 | 2-3S | 0.021 | 4.5A | 322 | 70 | Φ7-12.5*25.2-HUS | 149 |
| 30401141 | G4 | 17.5 | 3020 | 2-3S | 0.036 | 3.7A | 234 | 51 | Φ7-12.5*25.2-HUS | 149 |
| 30401142 | G4 | 21.5 | 2500 | 2-3S | 0.055 | 3.0A | 173 | 38 | Φ7-12.5*25.2-GUS | 148 |
| 30401133 | G3 | 25.5 | 1780 | 2-3 | 0.102 | 2.1 | 95 | 23 | Φ7-12.3 -U |
145 |
G3 motor User’s Manual
G4 motor User’s Manual
