Description

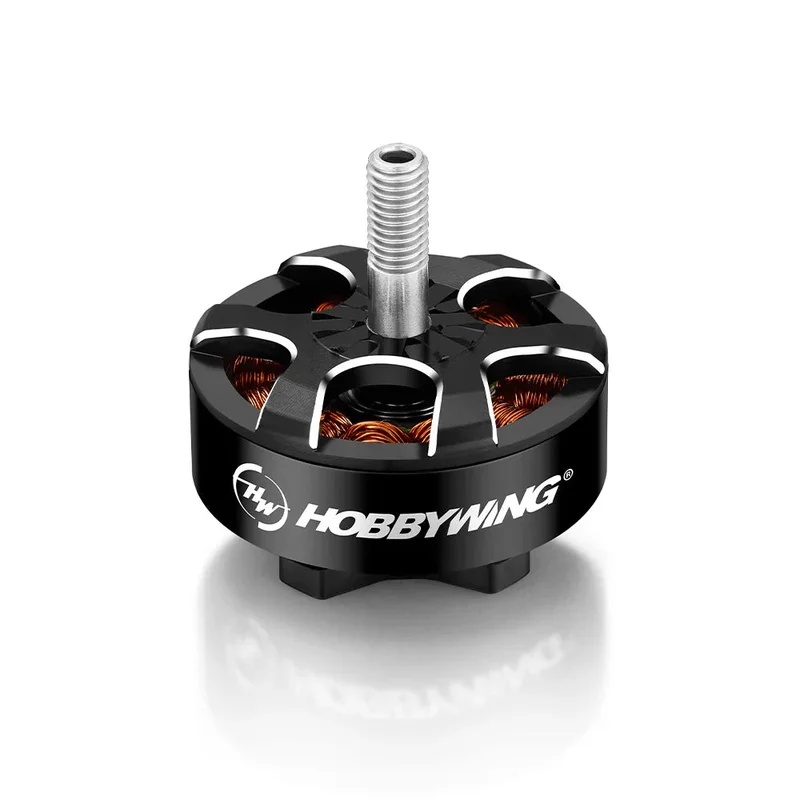

Hobbywing XRotor 2807 drone motors Specifications
| Parameter | 1300KV | 1500KV | 1700KV |
|---|---|---|---|
| 2807 Motor | |||
| KV Rating | 1300KV | 1500KV | 1700KV |
| Rated Voltage (LiPo) | 4-6S | 4-5S | 3-4S |
| Max Continuous Current | 56.7A/9s | 59.75A/11s | 53.9A/20s |
| Max Continuous Power | 1361W/9s | 1195W/11s | 864W/20s |
| Max Thrust | 2818g | 2646g | 2205g |
| Motor Weight | 59g | 58.7g | 58.4g |
| Motor Dimensions | Φ34 *20.5mm | Φ34 *20.5mm | Φ34 *20.5mm |
| Number of Slots | 12N14P | 12N14P | 12N14P |
| Wire Gauge | 18AWG. 200mm | 18AWG. 200mm | 18AWG. 200mm |
| Recommended ESC | 60A 3-6S ESC | 60A 3-6S ESC | 60A 3-6S ESC |
| Compatible Propellers | HQ7x3.5×3 | HQ7x3.5×3 | HQ7x3.5×3 |
| Compatible Frame Size | 7 inch | 7 inch | 7 inch |
| Recommended Single Shaft Thrust | 1300KV/913g/rotor(HQ7x3.5×3.50%TH.6S) | 1500KV/808g/rotor(HQ7x3.5×3.50%TH.5S) | 1700KV/628g/rotor(HQ7x3.5×3.50%TH.4S) |
| 1300KV/966g/rotor(HQ7x4x3.50%TH.6S) | 1500KV/895g/rotor(HQ7x4x3.50%TH.5S) | 1700KV/695g/rotor(HQ7x4x3.50%TH.4S) |
Note: This product is in the pre-sale stage. the price is not the actual price
Hobbywing XRotor 2807 Motor Features
- Superior Temperature Performance: The motor features a large hollow design at both ends. enhancing heat dissipation. This design improves the motor’s heat performance by approximately 20% compared to similar models.
- Anti-Loosening Rotor Design: The rotor is secured with high-temperature resistant. high-strength adhesive to prevent loosening. increasing overall reliability.
- Premium Materials: Uses top-brand 0.2mm pure copper sheets. offering lower iron losses; 18AWG silicone wires that are softer and easier to manage compared to traditional wires.
- 200°C High-Temperature Endurance: Equipped with high-temperature resistant enamelled wires. boosting the motor’s resistance to high temperatures and extending its lifespan.
- N52H Strong Magnetic Arc Design: Provides greater torque output. enhancing power performance.
Hobbywing XRotor 2807 Motor Details
Hobbywing XRotor 2807 Brushless FPV Motor: 1300KV. 1500KV. or 1700KV. Suitable for 7-inch FPV drones. The motor features high-efficiency design. high-power output. and precision manufacturing. It has a maximum current of up to 16A. with a voltage range of 4-12V. The motor is suitable for most 7-inch FPV drone applications.
