Description
** Discontinued – New Version Here **

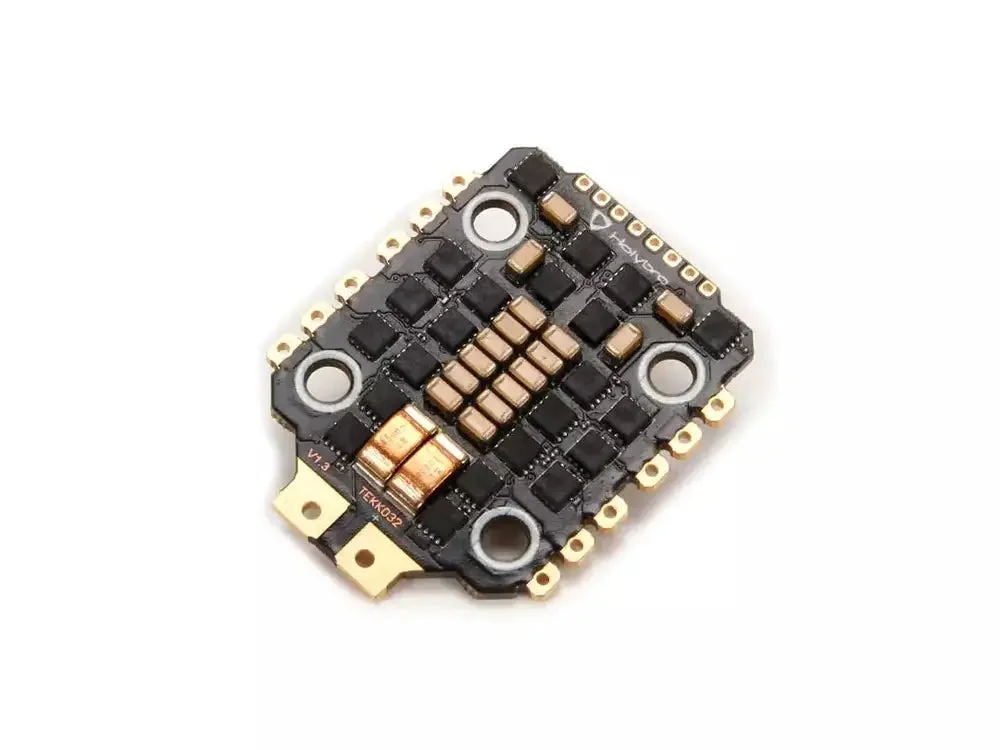

The Holybro Tekko32 F4 4-in-1 Mini 45A ESC V1.3 offers superior power, performance, and durability. It boasts a max current of 45A and a signal refresh rate of up to 96K, allowing for lightning-fast motor response with minimal signal interference. An ideal choice for any FPV racer.
Specifications:
- F4 MCU with BLHELI32 firmware
- Maximum PWM output upto 96K (default 48K)
- Amperage meter scale ratio has been adjusted to 120.
- PWM input, TLM supported
- Voltage output (VBAT)
- NO output BEC
- Supports oneshot / Multishot / Dshot PWM
- Supports damped light
- Supports 3-6S lipo input
- cap needed for 6s (1000uf 35v for 6s usage.)
- Mounting holes: 20x20mm (M2& M3 Rubber Gourmet Included)
- Size:30 x 39 mm
Pinout:
Includes:
1x Holybro Tekko32 F4 4-In-1 Mini 45A ESC V1.3
4x M2 Anti-Vibration Silicone Grommet Inserts
4x M3 Anti-Vibration Silicone Grommet Inserts
1x Electrolytic Capacitor 1000uF 35V
1x 8pin to 8pin 1mm pitch 65mm Cable
1x 8pin to 8pin 1mm pitch 25mm Cable
