Description

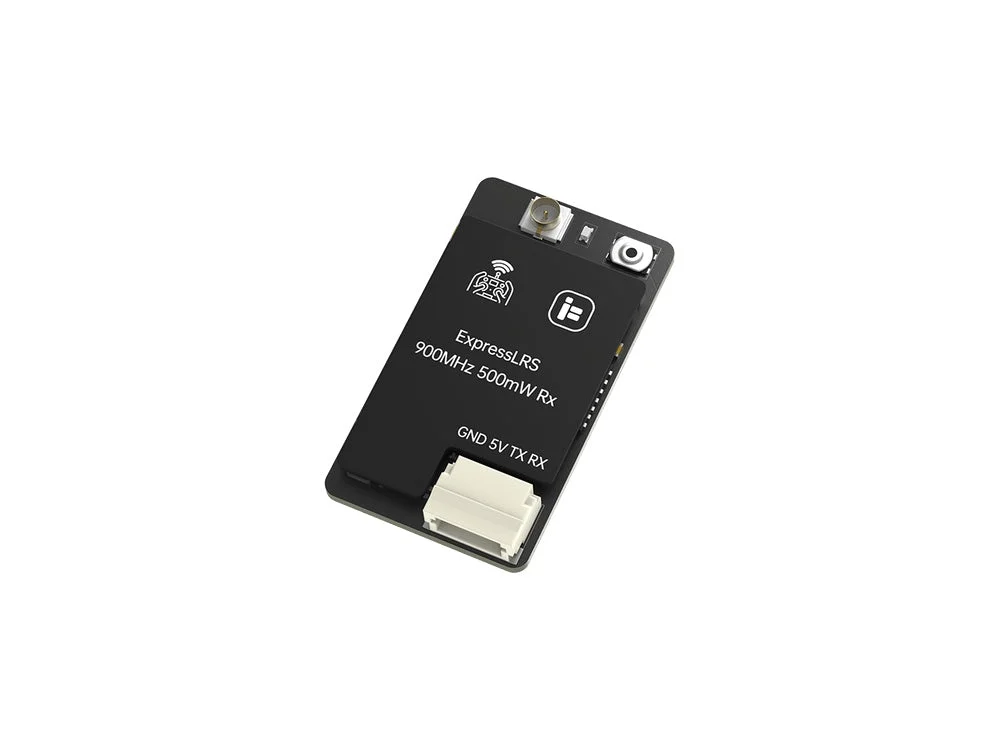

The iFlight ELRS 868/900MHz 500mW Receiver incorporates a temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations, with telemetry power reaching up to 500mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Features:
- Single-sided electronic components, saving assembly space
- Aluminum heatsink plate to protect electronic components, and enhance anti-interference capability
- Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability
- Pre-soldered SH1.0 connector (Plug&Play for easy installation with iFlight FCs)
- Up to power 500mW telemetry power, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
Specifications:
- MCU: ESP 8285
- Receiver Type: Single antenna
- Firmware: iFlight 900MHz 500mW RX (868MHz/900MHz)
- Lua Script: iF 900 500mW RX (868MHz/900MHz)
- Frequency bands: 868MHz EU/900MHz FCC
- Telemetry Power: 100-500mW (20-27dBm) (868/900MHz)
- Dimension: 14*25*4.3mm
- Protocol: CRSF
- LNA: N/A(868/900MHz)
- Weight: 1.8g
- Antenna Length: 220mm
NOTE:
- Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
- Flash the latest firmware and follow the ELRS Community for updates, tutorials, or contributions.
- Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at a very low frequency deviation. Please check this article for further information:
- https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error
Includes:
1x iFlight ExpressLRS ELRS 900MHz 500mW Receiver
1x Antenna
