Description
Overview

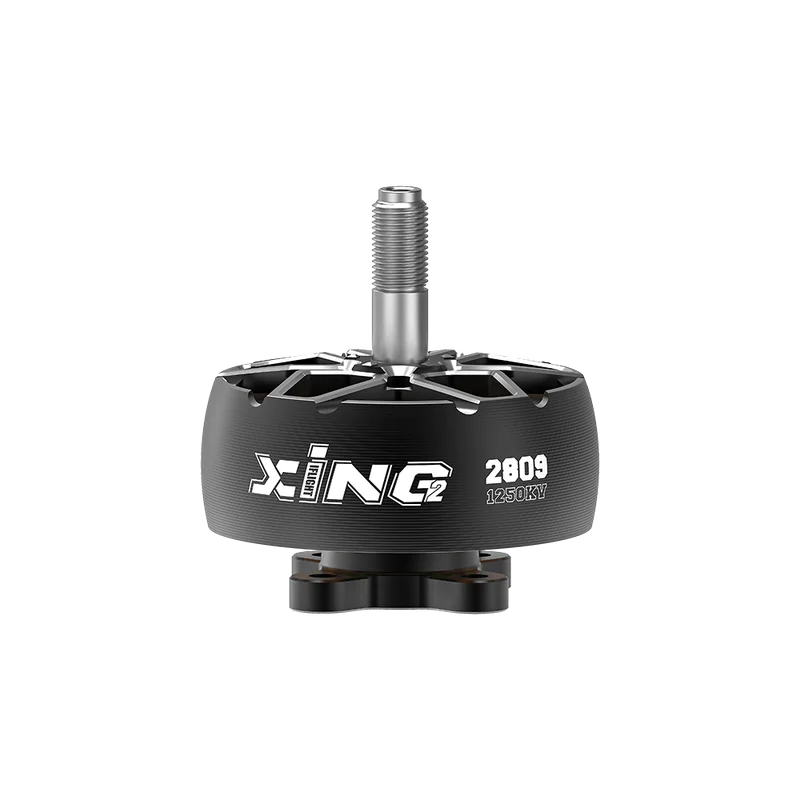

The iFlight XING2 2809 Brushless Motor is engineered for Cinelifter builds and large-format FPV drones. offering unmatched torque and thrust for carrying heavy payloads such as full-size GoPros. RED cameras. or Blackmagic rigs. With three KV variants—800KV. 1250KV. and 1600KV—this motor delivers powerful. smooth. and efficient performance for 7-inch to 10-inch drones.
Upgraded with center-slotted N52H curved arc magnets. a crash-resistant 7075 aluminum Unibell bell. and NSK 11x5x5 bearings. the XING2 2809 reduces response lag and improves precision in PID control loops. Built for aerial cinematography and power-hungry freestyle. this motor sets the new standard for Cinelifters and long-range heavy-duty drones.
Key Features
-
Ideal for 7″–10″ Cinelifter & Heavy-Lift FPV Drones
-
5mm Titanium Alloy Shaft – Ultra-strong and crash-tolerant.
-
Unibell Design with 7075 Aluminum Bell – Improved rigidity and impact resistance.
-
Center-slotted N52H Arc Magnets – Boost throttle response and torque.
-
NSK 11x5x5 Bearings – Smooth. quiet operation with extended life.
-
O-ring Bearing Gap Protection – Prevents dust and debris intrusion.
-
260mm 18AWG Silicone Wires – Ideal length for larger frames.
-
Dynamically Balanced Rotor – Ensures smooth flight and reduced vibration.
Specifications
| Parameter | 800KV | 1250KV | 1600KV |
|---|---|---|---|
| Weight (incl. wire) | 61.4g | 60.7g | 59.9g |
| Interphase Resistance | 127mΩ | 65.46mΩ | 47mΩ |
| Input Voltage | 6S (24V) | 6S (24V) | 6S (24V) |
| Peak Current | 25.63A | 50A | 62.24A |
| Max Power | 610.3W | 1145W | 1456.4W |
General Structure
-
Motor Dimensions: φ35.33 × 21.7mm
-
Shaft Diameter: 5mm
-
Shaft Protruding Length: 15mm
-
Mounting Pattern: 19×19mm (M3 screws)
-
Magnet Type: N52H Curved
-
Configuration: 12N14P
-
Lead Wire: 260mm / 18AWG
-
Winding: Single-strand copper
-
Bearing Type: NSK
-
Bearing Spec: φ11×φ5×5mm
-
Rotor Type: Unibell CNC Bell
Recommended Pairings
Compatible Drone Sizes
-
7-inch. 8-inch. 9-inch. and 10-inch FPV drones
-
Ideal for Cinelifter builds. long-range cruisers. mapping drones. or custom aerial film rigs
Recommended ESCs
-
iFlight BLITZ E80 / F60A 4-in-1 ESC
-
T-Motor F60A / F80A ESC
-
Holybro Tekko32 F60 Pro
Use 60A–80A high-current ESCs with BLHeli_32 firmware for stable operation and thermal headroom under payload stress.
Recommended Propellers
-
Gemfan 7037 / 8042 / 9045 / 1045
-
HQProp 8×4.5×3 or 9x5x3
-
Dalprop T7056C
Match the KV variant with the prop size and drone weight—800KV for 9–10″. 1250KV for 7–8″. and 1600KV for punchy 7″ freestyle setups.
Changelog
-
May 5. 2024: Updated included screws from M3×8mm to M3×10mm for better mounting support on thicker arms.
Packing List
-
1 × XING2 2809 Brushless Motor (KV optional)
-
4 × M3×10mm Mounting Screws
-
1 × M5 Flange Nut
Test Report
XING2 2809 800KV motor specs: 61.4g. 35.33*36.7mm. 127mΩ. 24V. 25.63A peak. 610.3W max. N52H magnet. 12N14P config. NSK bearings. single strand copper winding. Datasheet includes HQ prop performance at various throttle levels.
XING2 2809 1250KV motor specs: 60.7g. 35.33×36.7mm. 24V. 50A peak. 1145W max. N52H magnet. NSK bearings. single-strand copper winding. Includes M3 screws and M5 nut. Performance data for HQ 8*4*3 and GF 7040 props at various throttle levels.
