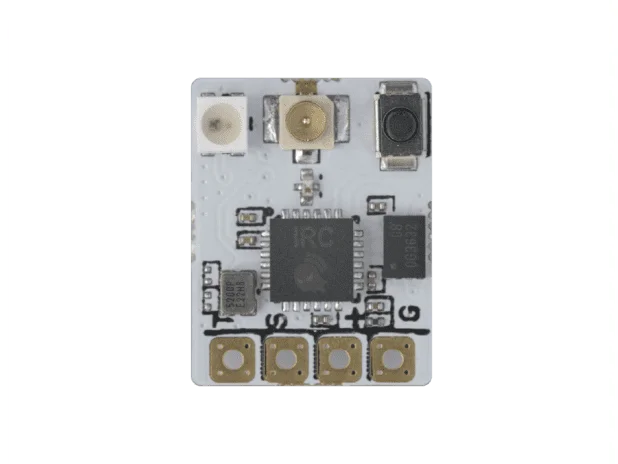

Immersion RC Ghost Atto Receiver

Description

Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.

Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.

Specifications:

• Frequency Range : 2406 – 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
• Downlink Tx Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k),  GHST, SBus Inverted
• Firmware: Over-the-air (OTA) upgradable
• Power Supply: 5V recommended, as low as 3.6V tolerated
• vTx control: Tramp control from ‘T’pin on Rx, regardless of selected serial format
• Antenna Connector: U.FL
• Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)

Includes:
1x Immersion RC Ghost Atto Receiver
1x Ghost qTee Dipole Antenna
